Double Cone Screw Mixerindustrial Powder Blendernauta Mixer

Product Description

Multi-Materials Conical Twin-Screw 360 Degree Rotary Soap Making Machine Product Description
Machine description:

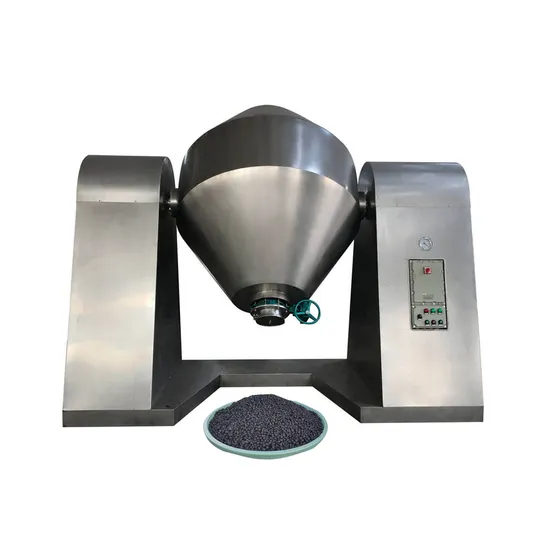

This machine is mainly used for the uniform mixing of powder and granular materials in the pharmaceutical, chemical, electronic, and food industries.
This machine is mainly composed of mixing barrel, frame, transmission system, electrical system and other parts. It uses two asymmetric barrels and adopts gravity mixing. The materials are continuously gathered and dispersed in the barrel, generally after 10~ It takes about 30 minutes to mix, so that two or more powder and granular materials are fully mixed and uniform, especially suitable.
When the proportion of two or more materials is combined, the mixing uniformity can reach more than 99%. The inner and outer walls of the mixing barrel are precisely polished, and the surface is smooth, flat, without dead ends, and easy to clean. During the working process of the transmission system, there is no jitter, no noise, convenient maintenance, accurate and sensitive electrical control, and stainless steel butterfly valve discharge, no leakage and no dust. The machine is unique in design, beautiful in appearance and versatile in use. It is an ideal equipment for mixing materials
1. The mixing barrel is a W-shaped double-tapered cylinder, and the material is 304-2B high-quality stainless steel plate ring formed by round and close welding, which is more conducive to cleaning the barrel after the material is mixed. The inner and outer walls are precisely polished and polished, with smooth surface, no dead ends, thorough discharge, and easy cleaning;
2. The transmission system is composed of a motor, a reducer, a sprocket, a bearing, a transmission shaft and other parts. There is no noise during the working process, and the operation is stable without jitter and eccentricity;
3. The frame of the mixer is made of channel steel, which is welded firmly, and the outer frame of the frame is made of 304-2Bδ1.5mm stainless steel. The surface is flat, without scratches, and no welding traces. The side of the rotating bracket electrical control is a movable door for easy maintenance;
4. The discharge port of the barrel is installed with a DN150 stainless steel sealing butterfly valve, which has good sealing effect and convenient operation;
5. The feed port is a DN350 manhole, and the seal is made of edible silicon rubber sealing strip, which is pollution-free and easy to operate. Advantages
Efficient mixing performance
It can quickly and evenly mix materials of different ingredients, greatly improving production efficiency. Regardless of the particle size and density differences of the
materials, a good mixing effect can be achieved.
Adopting advanced mixing technology and design, it ensures that a high uniformity mixing state is achieved in a short time, reducing mixing time and energy consumption.
Diversified applicability
Applicable to many different types of materials, including powders, granules, liquids, etc. It can meet the needs of different industries and production processes, such as
chemicals, pharmaceuticals, food, building materials, etc.
It can be customized and adjusted according to the characteristics and mixing requirements of different materials, providing flexible solutions.
Easy and reliable operation
Mixers usually have a simple and easy-to-understand operation interface, and operators can start operating after simple training. It reduces dependence on professional
technicians and saves labor costs.
The equipment runs stably and reliably with a low failure rate. High-quality materials and advanced manufacturing processes are used to ensure the durability and long life
of the equipment.
Safety and environmental protection
Equipped with complete safety protection devices, such as overload protection and emergency shutdown, to ensure the safety of operators. At the same time, the
equipment has low noise and less dust during operation, which meets environmental protection requirements.
Some mixers also use a sealed design to prevent material leakage and environmental pollution, ensuring the cleanliness and hygiene of the production process.
Space saving
The mixer has a compact structure and occupies a small area. It is an ideal choice for production sites with limited space. It can effectively utilize space and improve the
utilization rate of production sites.
2. Selling point
Excellent mixing effect
Emphasize the high uniformity of mixing that the mixer can achieve, and provide customers with high-quality products. The advantages of the mixing effect can be
demonstrated through actual cases, data comparisons, etc.
Highlight the adaptability of the mixer to different materials, so that customers can understand that the equipment can meet their diverse production needs.
Efficient energy saving
Promote the efficient mixing performance of the mixer, which can complete the mixing task in a short time and improve production efficiency. At the same time, explain the
energy-saving characteristics of the equipment, reduce energy consumption, and save costs for customers.
Energy consumption data and energy-saving effect analysis of the equipment can be provided, so that customers can intuitively understand the energy-saving advantages
of the mixer.

Modle	SZH-500	SZH-1000	SZH-1500	SZH-4000
Volume(L)	5000	1000	1500	4000
Power(kw)	2.2	3	4	11
Speed(rpm)	12	12	10	7-8
Rotation height(mm)	1950	2460	2540	3730
Dimensions(mm)	1910*800*1940	2765*1500*2370	2960*1500*2480	4750*2500*3680
Mixing time(min)	6-10	6-10	6-10	6-10
Capacity(kg)	250	500	750	2000
Weight(kg)	550	810	980	3200

The upper die adopts double axis for circular movement up and down, and the lower die adopts double axis for circular movemewith imported silica gel sealing r Product Parameters


Packaging & Shipping



FAQ If you can't find the answer to your concern, contact us immediately and enjoy our service now.
Q:Do you have any guarantee for the product quality?
A: Yes, we have a sound quality control system and ensure that each product undergoes strict inspection to ensure that the product quality meets our standards and customer requirements. If customers find quality problems after receiving the products, we will promptly handle and compensate.
Q: Do your products meet international quality standards?
A: Yes, our products meet international quality standards and have passed the corresponding certifications. We will list the relevant certification information in the product specifications.
Q: What kind of packaging protection do you provide during transportation?
A: We will adopt different packaging methods to ensure product safety based on different products and transportation methods. Generally, we use durable packaging materials and methods to ensure the products are not damaged during transportation.
Q: What is your general delivery time?
A: The delivery time will vary according to the specific order requirements. We will do our best to ensure that the order can be delivered on time, and communicate the expected delivery time with the customer immediately after order confirmation.
Q:Can you provide customized services if I have specific needs?
A: Yes, we can provide customized services. We will formulate corresponding plans based on the customer's needs to meet their special requirements.
Q:Do you provide technical support and after-sales services?
A: Yes, we provide professional technical support and after-sales services. We will provide timely and professional assistance to customers for any problems that may arise during product use or for technical support.
Q: What payment methods do you accept?
A: We support multiple payment methods, such as TT, LC, Western Union, etc. We will communicate with the customer and negotiate the most suitable payment method after order confirmation for both parties.
Q: How can I obtain more detailed product information?
A: You can obtain more detailed product information through our official website or by contacting our sales staff. Our sales staff will provide the most professional consultation and advice based on your needs.
Q:Do you have any other customer experience sharing or case introductions?
A: Yes, we can provide other customer experience sharing or case introductions. This information can provide customers with more references and helpful insights.
