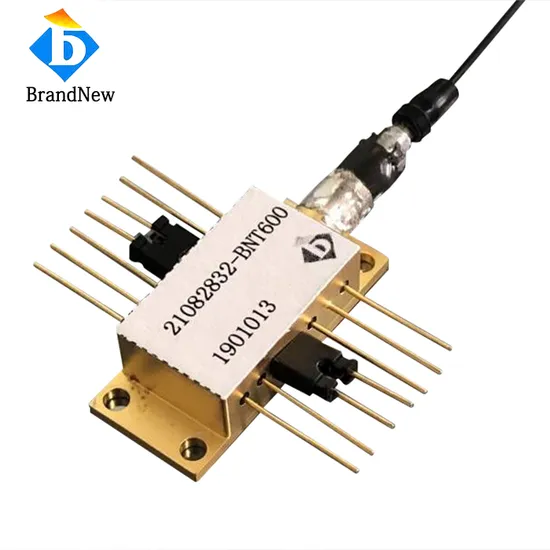

600MW 785nm Butterfly Fiber Coupled Laser Diode 14pin Stabilized Wavelength for Raman Spectroscopy

Product Description

600mW 785nm Butterfly Fiber Coupled Laser Diode 14Pin Stabilized Wavelength for Raman Spectroscopy These volume Bragg grating stabilized laser diodes offer a narrow linewidth, high power solution for Raman Spectroscopy research and testing applications. These 785nm diode lasers are fiber coupled devices offered in a butterfly packaged with integrated cooler, thermistor and PD. They offer up to 600mW of power at 785nm in a wavelength-stabilized, high-power, fiber-coupled laser designed. Due to the integrated VBG the wavelength is fixed and the spectral width is very narrow. This model is also used in metrology, bio-Instrumentation, sensing, and analytical instrumentation applications.
Key features:
Wavelength Stabilized 785nm ±0.5nm
Butterfly Package with Internal Cooler, Thermistor and Photodiode
Volume Bragg Grating Stabilized
Spectral Width: <0.1nm
Fiber core: 105 μm, 0.22NA
FC/PC or SMA905 Fiber Connector optional
Fiber length can be customized
Applications:
Raman Spectroscopy
Analytical Instruments
Biological Research
Specification Item No.: FC785DL600

Optical	Typical Value
Center Wavelength λ	785nm
Wavelength Tolerance	±0.5nm
Output Power	600mW
Spectral Width FWHM	0.1nm
Slope Efficiency	0.98W/A
Electrical
Operating Current Iop	0.92A
Threshold Current Ith	0.31A
Operating Voltage Vop	1.82V
PD	<2000μA
Thermistor kΩ/β(25ºC)	10±5%/3450
TEC Working Current/Voltage	2.5A/6.3V
Fiber
Fiber Bend Radius	>40mm
Fiber Core Diameter	105um
Fiber Numerical Aperture	0.22NA
Fiber Length	1M
Fiber Connector	SMA905 or FC/PC
Thermal
Operating Temperature	15~35ºC
Storage Temperature	-20-50ºC
Wavelength Temperature Coefficient	~0.01nm/ºC

Dimension About us Hangzhou Brandnew Technology Co., Ltd.
Founded in 2011, BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including fiber-coupled, stack bar lasers and plug and play lasers.
Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Today, over 60 technicians and 2 scientists, 20 technicians are with PHD degree. Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.
BrandNew's strengths are in talent employees, quality engineering,Process control, product development and volume manufacturing.
Core Competency
Diode Packaging Beam Shaping
Reliability Testing Efficient Cooling FAQ Can you provide technology supports?
Yes, we have a professional technology supporting team for your timely services.
What about the delivery?
We can offer the door to door services by air, just depend on your actual request. Such as DHL, UPS, TNT, FEDEX
What is the lead time?
Normally 3-5 days. Customized products need 15 working days.
Do you have any MOQ limit?
Low MOQ, 1pc for sample checking is available

What is your terms of payment?
T/T or Western Union, for your choice.
Do you offer guarantee for the products?
Yes, all products have been tested before shipping out.
Lifelong technique support. One year warranty.

---
