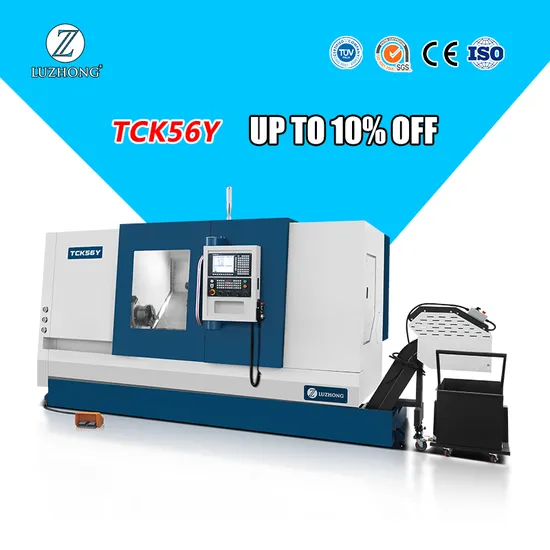

Automatic Metal Y axis TCK56Y Horizontal Metal Slant Bed CNC Lathe

Product Description

High Precision TCK56Y Horizontal Metal Slant Bed CNC Turning Center Lathe price
Product Description
Product Parameters
Product main technical specifications:

SPECIFICATIONS	Units	TCK56Y
Swing over bed	mm	560
Max. workpiece length	mm	500/1000
Max. cutting diameter	mm	310
Spindle bore	mm	65
Spindle nose type	-	A2-6(Opt.A2-8)
Spindle speed steps	-	Stepless
Spindle speed range	rpm	50-4500
Chuck	-	8'' Hollow hydraulic chuck(Opt. 10'')
X axis travel	mm	200
Y axis travel	mm	±50
Z axis travel	mm	450/900
X axis rapid traverse	mm/min	30
Y axis rapid traverse	mm/min	12
Z axis rapid traverse	mm/min	30
Main motor power	kw	11~15
Turret type		12 Station power turret
Turret Model		BMT45-ER25
Tailstock quill taper	-	MT4(Opt.MT5)
Tailstock base travel	mm	400/900
Guide rail type	-	Slant bed linear rail
Machine weight	kg	4800/6500

Machine Standard Details

MACHINE STRUCTURE 1. Adpot 45° one piece slant bed casting structure	SPINDLE UNIT 1. High speed Taiwan spindle unit, spindle speed 4500rpm.
SCREW 1.Famous Nanjing/Taiwan Screw	LINEAR RAILS 1.X and Z axis Adopts Taiwan Linear rails 2.High speed , High accuracy
CNC CONTROL SYSTEM 1.Standard:GSK988TA control system	HYDRAULIC CHUCK 1.Standard: 8" Hollow hydraulic chuck
TURRET 1.Standard with 12 position Power turret+C axis +Y axis 2.Multifunctional for doing turning,drilling ,milling tapping threading.	TAILSTOCK 1.HIWIN roller linear rails type tailstock,Hydraulic automatic moving tailstock
HYDRAULIC SYSTEM 1.Hydraulic system to give power supply for hydraulic chuck and hydraulic tailstock	LUBRICATION SYSTEM 1.Automatic centralized lubrication device .
SCHNEIDERELECTRICAL COMPONENTS1. With Schneidersafety electrical components	AIR CONDITIONER 1.With Industrial electrical cabinet air conditioner. Cooling the electric box better.
AVIATION QUICK PLUG 1.Easy for connect ,Convenient and fast	TESTING 1.Each machine passed Renishaw laser interferometer testing

Machine Optional Details
Company Profile
Shandong Luzhong Machine Tool has : More than 100,000m² of the factory with more than 200 workers.
Strictly QC control with more than 24 steps testing processes.
30+ years CNC machine manufacture experience factory.
24 hours online service at any time.
Trade with customers in more than 150 countries around the word.
Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC etc.
Support ODM OEM.
Warranty time is 18 months.
Shandong Luzhong Machine Tool Co.,Ltd. Has got many international certifications such as ISO, WIPO, CE, BV, TUV, SGS, and patents. Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and Southeast Asia. And we provide long-term overseas technical guidance and after-sales service for these countries.
Adhering to the "Best Machine by LUZHONG" purposes, We provides better quality machines, more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
