Phe Gasket Vulcanizing Press Machine

Product Description

36 MONTHS WARRANTY Rubber Vulcanizing Press Machine with Oversea-Service

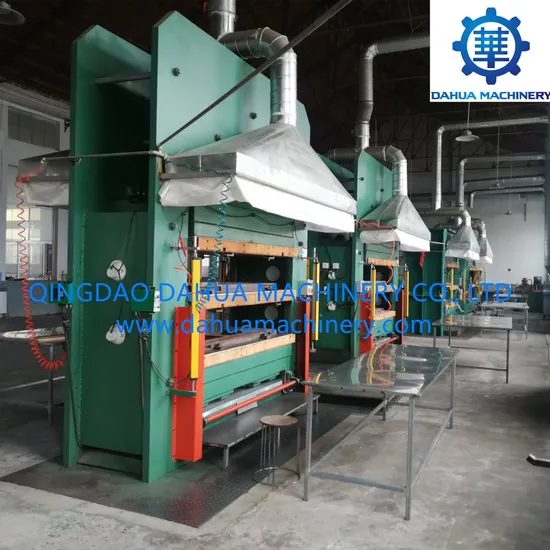

Vulcanizing Press For Gasket Of Plate Heat Exchanger
This series of machines is specially designed for the production of gaskets for plate heat exchangers, o-rings, sealing strips and other rubber sealing products.
Usage:
Rubber vulcanizing press applies to all kinds of rubber (natural rubber, EPDM rubber, NBR rubber, synthetic rubber, silicone rubber ext. ) vulcanizing and compression molding.
rubber vulcanizing press can be used to make O ring, sealing parts, oil seal, auto parts, rubber crash pad, rubber air spring, key board, medical rubber parts, rubber bottle stopper, silicone wrist band, water-stop tape, bridge support/bridge bearings, rubber cable, electronics insulators etc..
Main Parameter:

Parameter/model	XLB-1250X1250X1	XLB- 1300×2000X1	XLB- 1200×2500×1	XLB 1500×2000×1	XLB 2000×3000×1
Total Pressure(MN)	3.15	5.6	7.5	10	18
Plate Size(mm)	1250X1250	1300×2000	1200×2500	1500×2500	2000×3000
Daylight(mm)	400	400	400	400	400
Daylight Qty	1	1	1	1	1
Piston Stroke(mm)	400	400	400	400	400
Unit Area Pressure(Mpa)	2.2	2.15	2.5	3.3	3
Main Motor Power(KW)	5.5	8	9.5	11	26
Overall Dimension(mm)	1500X1600X2000	2000×1860×2500	2560×1700×2780	2810×1550×3325	2900×3200×2860
Weight(KG)	11000	17000	20000	24000	66000

Main parts instruction:
1.The machine adopts the advanced PLC control . The working program can be set in the cabinet and machine will work according to this program
2.Most spare parts for hydraulic system are imported from Taiwan
3.Machine body casting is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation
4.The machine pillars/ columns are made of medium carbon steel , and its hardness can reach HRC55-58
5.The cartridge heater adopts three stages winding, nichrome wire , non-rusty
6.Oil seal are from Japanese NOK and Sakagmi Brand , it is wear-resisitant ,durable and oil tight
7.Main electrical elements are from Schneider France ,which can stabilize machine performance Packing & Shipment:
About Dahua :
Qingdao Dahua Machinery Co.,Ltd. which was established in 2000 is affiliated to Shandong Rubber Machinery Research Institute.We specialize in scientific research,production and sales of Rubber Machinery.As keeping extensive close cooperation with Qingdao University of science and technology,Shandong University,China University of petroleum,Chinese Academy of Sciences we have made a great contribution to the development of China Rubber Machinery.
The company has experienced technical team,earnestly the grass-roots staff.We have advanced CNC machines and a variety of large and small mechanical processing equipment,heat treatment equipment and sophisticated detection equipment and introduced advanced UG 3D mechanical design software and performance optimization software in 2006. Our design team can design and manufacture non-standard rubber machinery according to customer requirements.
"Quality first, technology innovation" is the company's business principle,our products were rated as "excellent provincial famous brand" ,"free products" and exported to many countries and regions such as United States,Germany,France,Canada,Australia,South America and so on.With excellent quality and good customer service, the products have been well received among domestic and foreign customers!
We sincerely welcome customers all over the world to visit our company or call us to have a business negotiation, hope to make a good faith and win-win cooperation with you and common development hand in hand.
Customer Show:
Hot Sales:
FAQ:
Q: Are you manufacturer or trade company?
A: We are really 100% manufacturer.
Q: How many year's experience does your company have?
A: More than 20 years of concentration, we mastered several key technologies.
Q: What product can you supply?
A: Rubber press machine, Vacuum molding press machine, Injection Molding machine, Rubber mixer machine, calender machine, extruder machine and rubber product equipment solvtions.
Q: What are the operating modes of the machine?
A: With manual and semi-automatic operation mode.
Q: What control system does the machine use?
A: We use PLC as the core of control system, we ususlly usee Omron PLC.
Q: How long is the warranty of your machinery?
A: Our warranty is one year.
Q: How long is the delivery time?
A: Usually we need 40-60 days , if ther id inventory , we can finish the modification within one month, but it may take longer if ther are special requiements
.

---
