Product Description
Product Description

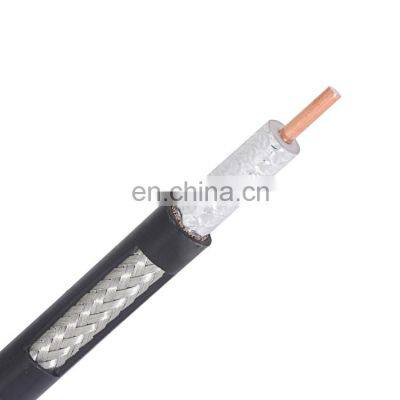

YUXUN Best Price Low Loss 50 Ohm CCA RG8/U Coaxial CableProduct Description
|
|
Specifications:
|
INNER
CONDUCTOR
| Material
| Copper Clad Aluminum
|
Diameter
| 2.74mm
|
INSULATION
| Material
| Foamed PE
|
Diameter
| 7.24mm
|
| | Material2
| Tinned copper
|
Diameter
| 216*0.16mm
|
Pitch
| 42mm,97% Coverage,
|
JACKET
| Material
| Black PE
|
Diameter
| 10.29mm
|
CHARACTERISTIC
IMPEDANCE
| 50ohms±2
|
Nominal Capacity
| 78(pf/m)
|
Attenuation
At 20℃
| 5.25 [ dB/100m@50MHZ]
|
7.00 [ dB/100m@100MHZ]
|
10.50 [ dB/100m@200MHZ]
|
16.60 [ dB/100m@500MHZ]
|
22.40 [ dB/100m@800MHZ]
|
25.30 [ dB/100m@1000MHZ]
|
28.10 [ dB/100m@1200MHZ]
|
31.72 [ dB/100m@1500MHZ]
|
36.05 [ dB/100m@1900MHZ]
|
Send inquiry
Click here for quote and more information>>>
Company Information
Production Line
Our client
Packaging & Shipping
Certifications
FAQ
Q1:Are you a trading company or manufacture?
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.
Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!!
>>
