Basic Info.
Maximum Lifting Height
12m
Standard Lifting Height
3 Meters
Load Chain Material
Alloy Steel G80
Warranty of Core Components
1 Year
Applicable Industries
Building Material Shops
Marketing Type
Ordinary Product
Core Components
Motor, Bearing, Gear, Gearbox
Lifting Speed
6.6m Per Min
Transport Package
Strong Wooden Case and Pallet
Production Capacity
1000 Piece/Pieces PE
Packaging & Delivery
Package Size
73.00cm * 46.00cm * 55.00cm
Package Gross Weight
130.000kg
Product Description

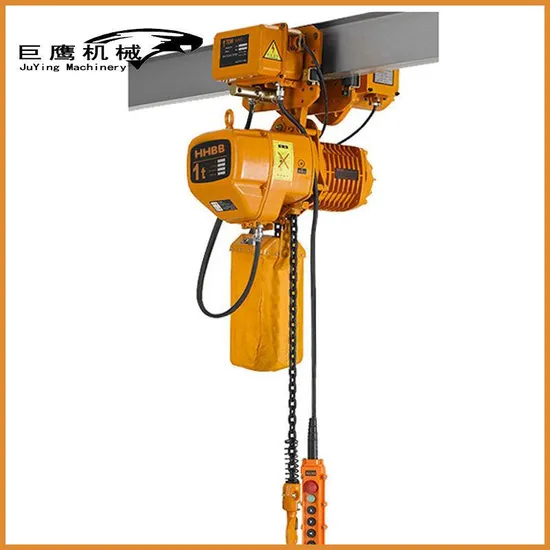

1. Enclosure: The casing is light and sturdy. High heat dissipation. The fully sealed design is suitable
for use in environments with poor working conditions.
2. Reverse phase protection device: It is a special electrical device.
When the power supply wiring is wrong, the control circuit cannot work.
3. Limit switch: There is a limit switch device for lifting and lifting the heavy object, so that the motor
stops automatically to prevent the chain from exceeding and ensuring safety.
4. Low-voltage handle switch: The handle low-voltage control 36V device can prevent accidents
when the switch leaks during operation.
5 Brake device: The brake is braked by disc DC electromagnetic field, the braking torque is large,
stable, rapid and low noise.
6. Chain: 80 grade super heat-treated alloy steel chain makes the chain more tough and more
durable. It ensures safety during work.
7. The operation of the device: an electric car with a guide means so that bot
Model
HHBB | Wll
(T) | Height
(M) | Speed
(M/Min) | Lift motor | Travelling speed | I-beam
(mm) |
Power
(Kw) | Phase | Volt
(V) | Frequency
(Hz) | Power
(Kw) | Speed
(M/Min) | Volt
(v) |
| 01-01 | 1 | 3 | 6.8/2.3 | 1.5 | 3 | 380 | 50 | 0.4 | 11/21 | 380 | 68-130 |
| 01-02 | 1 | 3 | 3.9/1.2 | 1.1 | 3 | 380 | 50 | 0.4 | 11/21 | 380 | 68-130 |
| 02-01 | 2 | 3 | 6.8/2.2 | 3.0 | 3 | 380 | 50 | 0.4 | 11/21 | 380 | 82-153 |
| 02-02 | 2 | 3 | 3.4/1.1 | 1.5 | 3 | 380 | 50 | 0.4 | 11/21 | 380 | 82-153 |
| 03-01 | 3 | 3 | 5.6/1.8 | 3.0 | 3 | 380 | 50 | 0.75 | 11/21 | 380 | 82-153 |
| 03-02 | 3 | 3 | 5.8/1.1 | 3.0 | 3 | 380 | 50 | 0.75 | 11/21 | 380 | 82-153 |
| 05-02 | 5 | 3 | 2.8/0.9 | 3.0 | 3 | 380 | 50 | 0.75 | 11/21 | 380 | 100-178 |
Product Description
Specification
Company Profile
Hebei Juying Hoisting Machiney Co.,Ltd was founded in 2005, and mainly produce chain hoist, electric hoist, mini electric hoist, hoist, lifting chain, lifting sling, lifting machinery equipment. The company has a complete and scientific quality management system. Relately it has been vertified by TÜV Rheinland.
|
|
|
|
|
>>
