Forst Industrial Dust Gas Filter Sandblasting Replacement Polyester Air Filter Cartridge

Product Description

Product Description

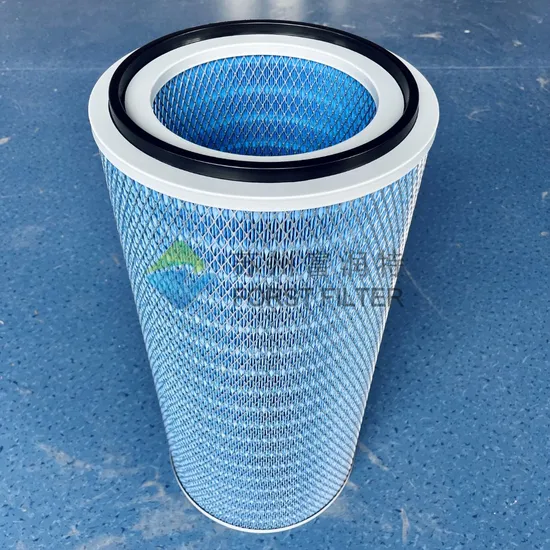

Forst High Quality Cylindrical& Conical Gas Turbine Air Intake Filter Cartridge Manufacture:
Gas Turbine Air Intake Filter cartridges are modern and reliable for air intake applications. They ensure high efficient filtration of dust and other contaminants even in the most polluted environments. Normally these are made of mixture of polyester & cellulose and Nanofiber media. These media have much better pleat ability & dimensional stability. Pleated filter media offer high filtration efficiency, very fine retention level, easy clean ability & aesthetically good product than other normal filter media.
Features
(1) Suitable for the filtration of many kinds of dust in polishing, sand blasting and welding fumes , and powder dust collection.
(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.
(3) Wide pleat spacing and smooth,hydrophobic PTFE provides excellent particle release.
(4) Excellent resistance to chemical erosion.
(5) Electrical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.
Product Parameters
Specification:

Model	Shape	O.D(mm)	I.D(mm)	Length(mm)	Filter area(m2)
SFF-01	cylinder	324	213	559(22")	18
SFF-02	cylinder	324	213	660(26")	21
SFF-03	cylinder	324	213	700(27.5")	22.3
SFF-04	cylinder	324	213	735(29")	23.5
SFF-05a	cylinder	408	293	875(34.5")	33.2
SFF-05b	cylinder	408	293	559(22")	21.6
SFF-06(twist lock)	cylinder	324	213	865(34")	25
SFF-01	cone	445-324	330-213	660(26")	23.3
SFF-02	cone	324-250	213-134	660(26")	16.4
SFF-03	cone	408-324	293-213	711(28")	23
SFF-04(twist lock)	cone	408-324	293-213	925(36.6")	34.3
SFF-01(TenKay type)	cylinder	324Top cap size:406×362	213	668(26.3")	22
SFF-02(TenKay type)	cylinder	324Top cap size:406×362	213	875(34.5")	28

Detailed Photos
Filter material
PolyesterPolyester PTFE MembranePolyester + AntistaticCellulose PaperNano FiberFlame Retardant NanofiberAntistatic NanofiberAntistatic + Flame Retardant NanofiberNeedle Felt
1. Base media: Spunbonded polyester
2. Operating efficiency: 99.9% on 1 micron
3. Washable: Several times
4. Maximum operating temperature: 200oF/93oC
5. Abrasion resistance: Excellent
6. Chemical tolerance: Excellent
7. Optional flame retardant media(FR): To order
Other composition:
1. Gasket: Neoprene rubber, good at absolute hermetic seal, improving the durability and life.
2. Inside cage: Galvanized steel, to prevent corrosion.
3. Molded top: Available in a varitety of styles and sizes to fit a wide range of Tubesheet Holes.
4. Molded bottom: Helps resist abrasive wear at the bottom of the elements.
Applications:
Notes:
1. Optional construction and dimensions are available on all cartridges.
2. Please contact us to make optimal filtration solutions of your applications.
Packaging & Shipping
Company Profile
SUZHOU FORST FILTER CO.,LTD is a professional enterprice for air inlet filtration and environmental protection equipment, with researching, development, design, manufacturing, sales, and service together. We introduced advanced technology, and equipment, high efficiency filter cartridge production line, integrated dispensing equipment and advanced stamping, welding, metal processing equipment. Filter core products is imported from United States, Japan, Korea, Europe etc. We can ensure reliable and advanced quality.
We have ISO9001-2008 quality standard system; strictly enforce the air filter standard (GB/T14295-2008). Main products: SFF-K series of new air conditioning units filter, SFF-K series self-cleaning air intake filter, SFF-X series cartridge filter, HR series dust filter cartridges and filters. They are widely used in the steel, shibuilding, rubber, chemicals, pigments, machinery, food, special powders industries etc.
SUZHOU FORST FILTER CO.,LTD is located in Zhangjiagang city of UN Habitat Award honor, it is a port city, Yangtze River is at the north of our factory, beautiful environment and convenient transportation area. It is one hour between Shanghai, Hangzhou and Suzhou city. We will supply reliable quality and professional after-sales service. Our faith is "clean space, intention to create", target is creating better and more clear environment for work and life.
FAQ
Q1: How can I get the quotation of filter cartridges?A: Please let us know :
1). OD x ID x Height;
2). Filter media;
3). Apply in which industry etc.Q2: How can I get the quotation for dust collector?A: Please provide us your:
1). dust type;
2). dust size;
3). Filter efficiency;
4). Temperature of dust;
5). Suggest Wind volume (m3/h)Q3: Sample time & Production time?A: Sample: 1-2 days, shipping time: 5 to 7 days by Express, such as DHL ,FEDEX,UPS.
A: Quantity: 100pcs~500pcs: 7~10days; 1000pcs ~5000pcs: 15days.Q4. Would it be possible for us to visit your factory?A:Sure, we welcome you at any time! Seeing is believing.Q5. Are you manufacturer or Trade company?A:We are professional manufacturer in China, and have in this line for almost 9 years.Q6.How to solve the quality problems?A:If the products are not conform to customer sample or have quality problems, our company will be responsible to make compensation for it.Q7.Can I get your products with our logo and design?A:Yes, you can. Most of our products can be customized according to your requirements.Q8.Which payment terms are you accept?A:T/T, LC, Western Union, Money Gram are available for us.We accept 30% T/T in advance, the balance should be paid before shipping.

---
