Industrial Slitting Blade Used for Aluminium Coil Cutting Processing

Product Description

Industrial Slitting Blade used for Aluminium Coil cutting Processing
Product Description

We offer the best-suited and successful grades Metal Industrial Blade used for coil center for slitting and shearing HSLA, AHSLA, Duplex, stainless steels, nickel alloys, copper, brass, titanium, indium aluminum, hot rolled steels, phosph, bronze, clad, and laminated metals
Grinding: Processing the shearing blade to specification in the final grinding step.
Our Industrial Slitting Blade used for Metal Sheet cutting Processing is meticulously manufactured using high-quality materials, including Tungsten Carbide and Tooling steels such as Cr12Mov, 6CrW2Si, D2, SKD11, SKD61, H13, H13K, HMB, HMK, and more. These materials ensure durability and longevity, allowing you to achieve precise and clean cuts every time.

Product Parameters

Item	OD*ID*T mm	Item	OD*ID*T mm
1	φ95*φ55*2	10	φ240*φ120*10
2	φ105*φ32*3	11	φ260*φ120*10
3	φ105*φ52*5	12	φ280*φ160*10
4	φ120*φ60*5	13	φ300*φ180*10
5	φ160*φ80*5	14	φ320*φ200*10
6	φ200*φ100*5	15	φ330*φ200*10
7	φ210*φ100*5	16	φ360*φ220*10
8	φ220*φ100*5	17	φ380*φ240*10
9	φ220*φ120*5	18	φ400*φ260*10
These are only some typical sizes. More are available. Please contact us for further information. OEM service is also available. Just send us the drawing or essential information of the blades. Our proficient engineers will take care of the rest.

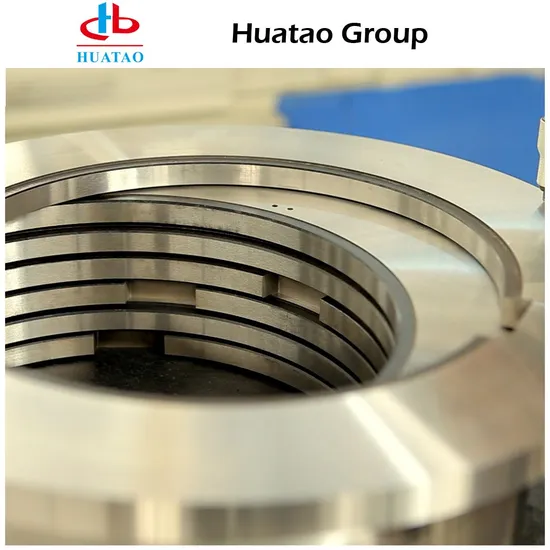

Detailed Photos
Packaging & Shipping

Our Advantages
1.The surface roughness of rotary sliiter knives should be less than 0.002mm,
2.The flatness and parallelism should be less than 0.001mm.
3.The inner hole of the blade should be +0.03mm to +0.05mm.
4.The concentricity of the outer circle of the cutting edge is 0.005mm.
5.The heat treatment hardness of the blade should be determined according to the material of the blade and the material and thickness of the cutting material.
6.Heat treatment method: vacuum deoxidation treatment and salt bath furnace treatment.
Slitting is the most important part in the production process, so the precision of Industrial Slitting Blade used for Aluminium Coil cutting Processing is very high. Huatao use a precision grinder to process the plane of the blade, which is forged, machined, heat treated, and then specially ground. , and is strictly controlled to ensure that the parallelism of all finished products is within 0.002mm.
Micron-μm level flatness, parallelism, thickness control.
- Micron-μm level edge defect control.
- Dimensional accuracy consistency control


After Sales Service
Contact us now to explore the possibilities and revolutionize your cutting operations with the Shinite OEM/ODM Industrial Slitting Blade used for Aluminium Coil cutting Processing

---
