Taiwan Milling Machines: Automated Milling Machine with High Precision Design

Product Description

Introducing the extraordinary 4s Vertical Lifting Table Milling Machine, a pinnacle of engineering brilliance, crafted with precision and finesse in Taiwan. This state-of-the-art treasure is prepared to redefine standards in precision and efficiency for the metalworking realm, promising an unparalleled experience for individuals who accept nothing less than perfection.
Product Description
Mechanical CharacteristicThoughtfully constructed using the superior Meehanna cast iron, this machine stands as a testament to remarkable rigidity and steadfast stability. It assures long-lasting performance without deformation, guaranteeing reliable and robust operation that endures the test of time.The spindle, enhanced with a refined blend of precision bearings, releases tremendous cutting power and ensures exceptional accuracy. This empowers the machine with superior machining capabilities, transforming it into a performance powerhouse.Featuring a revolutionary inverted hanging design, the end milling head excels in delivering extraordinary precision. Its user-friendly operation and convenient braking mechanism ensure ease of use. For those seeking personalized features, bespoke solutions are readily available to cater to specific requirements.The three-axis screw nuts are crafted from high-grade phosphorus meter copper, celebrated for its excellent wear resistance. This ensures an extended operational lifespan, providing consistent reliability and durability.The XY shaft slide undergoes advanced high-frequency annealing treatment, significantly enhancing wear resistance. This treatment extends the machine's operational lifespan, ensuring unwavering top-tier performance.An integrated lubrication system is expertly engineered to ensure premium sliding performance, maximizing machine efficiency and longevity.
Product Parameters
1.Milling Machine Rotation Speed
Rotation speed is a crucial element, directly affecting processing efficiency and cutting force. A higher rotation speed not only intensifies cutting power but also improves surface quality while diminishing residual stress on parts, resulting in superior machining outcomes.
Milling Machine Cutting Speed Cutting speed is vital in defining both processing speed and quality. The optimal speed depends on factors such as material hardness, cutter material, and machine type, ensuring exceptional results for diverse applications. Milling Machine Processing Accuracy Processing accuracy is a vital performance measure, significantly influencing both machining precision and part quality. It is affected by factors such as cutting force, machine and tool rigidity, workpiece clamping precision, and initial machine tool errors. Milling Machine Precision Stability Precision stability is essential for maintaining consistent machine accuracy throughout operation. It is influenced by initial tool errors, deformation of the machine tool, and tool wear, crucial for upholding quality.

Product Name
Product Name	Milling machine
Product model	4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	720MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	320MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-490MM
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	180° around / 45° front and back
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

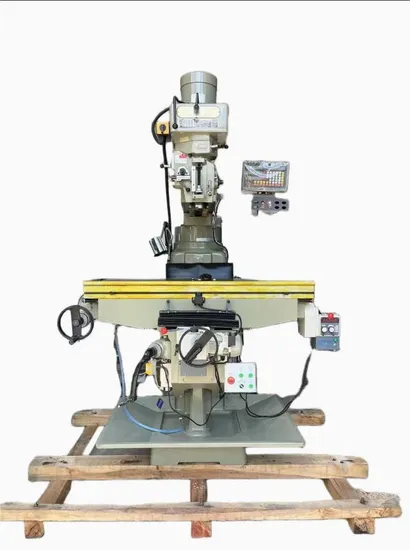

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.

---
