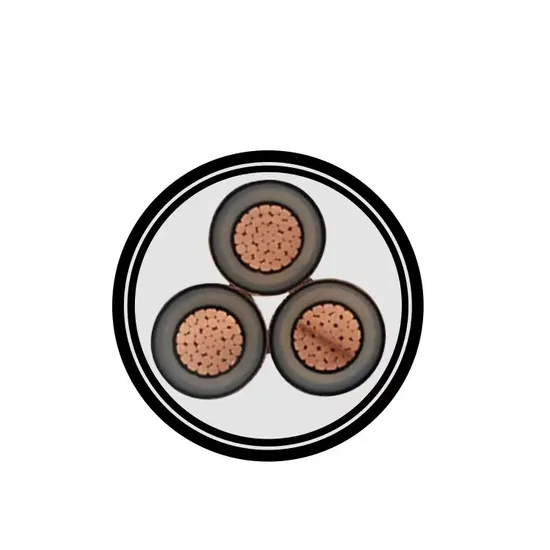

Wdzn Losh 3+1/4+1 XLPE Insulated Copper Core 35mm 50mm 70mm 95mm Cu/Al/XLPE/PVC/Swa Armoured Cable PVC Sheathed Power Cable

Product Description

* Product Description
Low Voltage mv 0.6/1kv 3.6/6kv 6/10kv 26/35kv Core Cu Conductor Xlpe Insulation Pvc Swa Armored Underground Copper Power Cable Conductor: Stranded CopperInsulation/Jacket: XLPE/PVC
Armoured: SWA(Steel Wire Armoured) / STA(Steel Tape Armoured) or Non-ArmouredCores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2Section Area: 1.5mm2-800mm2Standard: IEC 60502, BS 7870, GB/T12706 or other.Packaging: Iron Or Wooden DrumApplication: Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on.We can customize
the size according to your requirement..

HIGH ELECTRICAL CONDUCTIVITY COPPER OR ALUMINIUM CONDUCTOR Copper or aluminium stranded(Class 2) conductors according to lEC 60228
	HIGH RESISTANCE PVC/XLPE INSULATION Available with Cross-linked Polyethylene(XLPE)or Polyvinyl Chloride(PVC) insulation
UV RESISTANCE & FLAME RETARDANT PVC JACKET Provided with flame retardant PVC jacket to pass flame propagation test to lEC60332-1
	CUSTOMIZED DESIGNS Available in Armoured/Non-armoured and Shielded/Non-shielded constructions

No. of Cores	Conduct Cross Section Area	Cable Cross Section Area	Actual Armour Cross Section Area	Overall Diameter	Nominal Weight	Resistance of Conductor at 20ºC
/	mm²	mm²	mm²	mm	kg/km	Ω/Km
3	1.5	124.63	16	12.6	330	12.1
3	2.5	156.07	19	14.1	390	7.41
3	4	183.76	20	15.3	464	4.61
3	6	216.31	23	16.6	568	3.08
3	10	298.5	39	19.5	866	1.83
3	16	366.25	45	21.6	1152	1.15
3	25	510.45	62	25.5	1800	0.727
3	35	615.44	68	28	2230	0.524
3	50	637.62	78	28.5	2490	0.387
3	70	813.92	90	32.2	3290	0.268
3	95	1074.67	128	37	4440	0.193
3	120	1281.25	141	40.4	5470	0.153
3	150	1625.15	201	45.5	6930	0.124
3	185	1946.83	220	49.8	8350	0.0991
3	240	2383.27	250	55.1	10400	0.0754
3	300	2844.87	269	60.2	12600	0.0601
3	400	3481.91	304	66.6	14600	0.047

model Copper core	model Aluminum core	name	Scope of application
YJV YJY	YJLV YJLY	Copper or aluminum core cross-linked polyethylene insulated PVC sheathed power cable Copper or aluminum core cross-linked polyethylene insulated polyethylene sheathed power cable	When laid indoors, in tunnels, cable trenches, and pipelines, or in loose soil, the cable can withstand certain laying traction, but cannot withstand external mechanical forces
YJV22 YJY23	YJLV22 YJLY23	Copper or aluminum core cross-linked polyethylene insulated steel tape armored PVC sheathed power cable Copper or aluminum core cross-linked polyethylene insulated steel tape armored polyethylene sheathed power cable	Suitable for indoor, tunnel, cable trench, and underground direct burial laying. The cable can withstand mechanical external forces, but cannot withstand large tensile forces
YJV32 YJY33	YJLV32 YJLY33	Copper or aluminum core cross-linked polyethylene insulated fine steel wire armored PVC sheathed power cable Copper or aluminum core cross-linked polyethylene insulated fine steel wire armored polyethylene sheathed power cable	Suitable for high drop areas, capable of withstanding external mechanical forces and considerable tensile forces

* Technical data

No	Item	Data
1	Rated Voltage	AC 26/35kV, ≤36kV
2	Operating Temperature	90 ºC, ≤250 ºC, duration 5s.
3	Ambient Temperature	≥-10 ºC
4	Laying Temperature	≥0 ºC when installing and laying.
5	Bending Radius	Minimum Bending Radius is recommended. BR of Single Core ≤20D, BR of Multiple Core ≤15OD.

order number	Specifications	Conductor structure		Insulation		Cabling		Inner liner	Steel tape armor		sheath
	Number of cores × Section mm2	Number of pieces/diameter mm	Nominal outer diameter (or fan height) mm	Nominal thickness mm	Nominal outer diameter (or fan height) mm	Nominal outer diameter mm	Outer diameter of wrapping mm	Nominal thickness mm	layer × thick × Width mm	Nominal outer diameter mm	Nominal thickness mm		Nominal outer diameter m
											YJV YJLV	YJV22 YJLV22	YJV YJLV	YJV22 YJLV22
1	3×2.5+1×1.5	1/1.78	1.78	0.7	2.8	7.7	8.5	1.0	2×0.2×20	11.3	1.8	1.8	12.1	14.9
2	3×4+1×2.5	1/2.25	2.25	0.7	3.7	8.5	9.3	1.0	2×0.2×20	12.1	1.8	1.8	12.9	15.7
3	3×6+1×4	1/2.76	2.76	0.7	4.2	9.7	10.5	1.0	2×0.2×20	13.3	1.8	1.8	14.1	16.9
4	3×10+1×6	7/1.35	4.1	0.7	5.5	12.7	13.5	1.0	2×0.2×25	16.3	1.8	1.8	17.1	19.9
5	3×16+1×10	7/1.70	5.1	0.7	6.5	15.0	15.8	1.0	2×0.2×25	18.6	1.8	1.8	19.4	22.2
6	3×25+1×16	7/2.14	6.4	0.9	8.2	18.9	19.7	1.0	2×0.2×30	22.5	1.8	1.8	23.3	26.1
7	3×35+1×16	7/2.52	7.6	0.9	9.4	21.7	22.5	1.0	2×0.2×30	25.3	1.8	1.9	26.1	29.1
8	3×50+1×25	10/2.52	7.3	1.0	9.3	21.5	22.3	1.0	2×0.2×30	25.1	1.8	1.9	25.9	28.9
9	3×70+1×35	14/2.52	8.7	1.1	10.9	25.2	26.0	1.2	2×0.2×35	29.2	1.9	2.0	29.8	33.2
10	3×95+1×50	19/2.52	10.2	1.1	12.4	28.6	29.4	1.2	2×0.5×40	32.8	2.0	2.1	33.4	37.0
11	3×120+1×70	24/2.52	11.5	1.2	13.9	32.1	32.9	1.2	2×0.5×40	37.3	2.2	2.3	37.3	41.9
12	3×150+1×70	30/2.52	12.0	1.4	14.8	34.2	35.0	1.2	2×0.5×40	39.4	2.2	2.4	39.4	44.2
13	3×185+1×95	37/2.52	13.4	1.6	16.6	38.3	39.1	1.4	2×0.5×45	43.9	2.4	2.5	43.9	48.9
14	3×240+1×120	48/2.52	15.4	1.7	18.8	43.4	44.2	1.4	2×0.5×45	49.0	2.5	2.7	49.2	54.4
15	3×300+1×150	61/2.52	17.0	1.8	20.6	47.6	48.4	1.6	2×0.5×50	53.6	2.7	2.9	53.8	59.4

*FACTORY DISPLAYWelcome to Qingdao Dadi Energy Co., Ltd. Our factory was established in 2017,located in Qingdao, China, specializing in manufacturing and selling wires and cables. We can offer customized service of high and low voltage cross-linked cables, long-life wires and cables, PVC insulated power cables, bare wires, sheathed wires, control cables, shielded cables, halogen-free low smoke wires and cables, rubber sheathed cables, and various types of flame retardant and fire-resistant cables and mineral insulated cables. Our wires and cables have been certified in 28 European countries and exported to over 100 countries and regions, comply with CCC and ISO9001 certificates. We have remained true to our core principles of customer service, on time delivery, uncompromised quality and exceptional value at competitive prices. Quality assurance, welcome to consult to negotiate!

*Package
Q1:Who you are? What are your company's Main Products? This is Qingdao dadi energy co., ltd. Our factory was established in 2017,located in Qingdao, China, specializing in manufacturing and selling full series of wires and cables, such as: rubber sheathed flexible cable, sheathed cable, control cable, power cable, aerial insulated cable, aluminum stranded wires and steel core aluminum stranded wires, PVC insulated non-sheathed (soft) wire and cable, special cable.We have three independent production workshops with a building area of over 25000 square meters and an annual production capacity of up to 0.2 billion dollars.Q2: How can I get the Quotation of the products?Pls send your demand or specification to us or just E-mail our trade Manager, We'll reply to you within 2 hours in the Working days.Q3: What does your company do regarding Quality Control?Firstly, All raw materials were selected are the highest quality level. Secondly,Professional and skillful workers care for every detail in handling the production. Thirdly, Quality Control Department is specially responsible for quality checking in each process and final check before shipping to our customers.Q4: I didn't find my needed model in this page. Do you provide OEM Project Service? Surely , our factory could manufacturing more than10000 models, OEM & ODM order is warmly welcome and we can you put your brand name, (logo) on these products. What's more, our R&D team will give you professional suggestions.Q5: How could I get the Sample?We are honored to offer you samples if we have it in stock, usually it is not free , but we will return it to your on first time mass order .but you need to pay the freight. If you have a courier account or forwarder in China, we can send it your courier to collect samples.Q6: How long is the Delivery Time?For Sample: 1-3 working days ; For small orders: 3-10 working days; For mass orders: 10-18 working days. It is better to communicate with us if you are interested to place an order. It depends on your order quantity.Q7: What are your payment terms?Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.Q8: What is your Warranty? How about MOQ ?All the products will have 24 months Warranty,Our company has MOQ requirement, but we also accept small quantity. We would love to grow up with every customers. Please feel free to contact us and send us your inquiry.

---
