Axial Type Film Capacitors (CL20/CBB20) 630VDC RoHS

Product Description

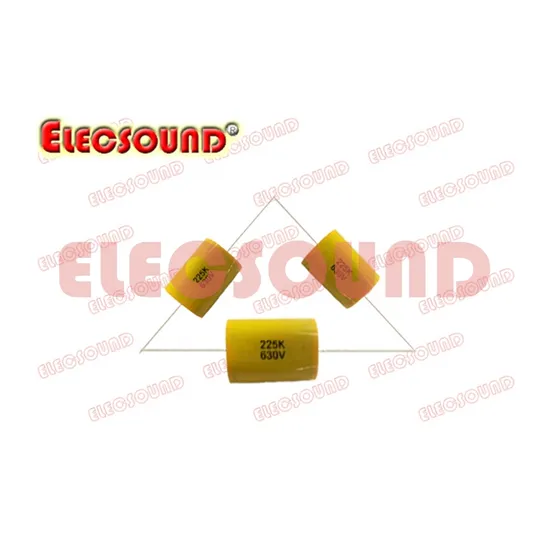

CL20 Metallized Polyester Film Capacitors
ELECSOUND
CL20 are non-inductively wound with metallized polyester film as dielectric/electrode with copper-clad steel leads, wrapped with polyester adhesive tape and ends filled with epoxy resin.

Features:

Small size, Light weight, Axial type

Wide capacitance range

Excellent self-healing property

Suitable for blocking, by-pass and coupling of DC and signals to VHF range

Widely used in filter, noise suppression and low pulse circuits

Technical Specifications:

Reference Standard: GB7332 (IEC60384-2)

Climatic Category: 40/85/21

Rated Voltage: 100V, 250V, 400V, 630V

Capacitance Range: 0.01 ~ 10.0μF

Capacitance Tolerance: ±5% (J) ; ±10% (K)

Voltage Proof: 1.6UR (2S)

Dissipation Factor: ≤0.01 (20ºC, 1 KHz)

Insulation Resistance:

Ur > 100V ≥7500MΩ, Cr ≤ 0.33μF (20ºC, 1 min)

≥2500S , Cr >0.33μF (20ºC, 1 min)

Ur ≤ 100V ≥3750MΩ, Cr ≤ 0.33μF (20ºC, 1 min)

≥1250S , Cr >0.33μF (20ºC, 1 min)

Dimensions: (mm)
μF	100VDC					250VDC					400VDC					630VDC
	L	H	T	D	d	L	H	T	D	d	L	H	T	D	d	L	H	T	D	d
0.01	15	7.5	3	6	0.6	15	7.5	3	6	0.6	15	7.5	3	6	0.6	15	7.5	3	6	0.6
0.1	15	8.5	4	7	0.6	15	8.5	4	7	0.6	15	11	4.5	8.5	0.6	20	11	4.5	8.5	0.8
0.18	15	9.5	4.5	7.5	0.6	15	9.5	4.5	7.5	0.6	15	12.5	6	10	0.6	20	12.5	6	10	0.8
2.2	25	15	7.5	12.5	0.8	33	16	7	13	0.8	33	18	10	15	0.8	32	24	15	21	1
2.7	25	16	8.5	13.5	0.8	33	17	7.5	13.5	0.8	33	20	10.5	16.5	0.8
3.3	32	15.5	8	13	0.8	33	18	8.5	14.5	0.8	33	21.5	12	18	1
3.9	32	16.5	8.5	13.5	0.8	33	18.5	9.5	15.5	0.8	33	22.5	13	19	1
4.7	32	18.5	9	15	0.8	33	20	10.5	16.5	1	33	24	14.5	20.5	1
5.6	32	19.5	10	16	0.8	33	21	11.5	17.5	1
6.8	32	20.5	11	17	1	33	22.5	13	19	1
10	32	23.5	14	20	1	37	24	15	21	1
Note: Capacitors of special specifications are made according to customer's need.
