Large Capacity Graphite Crucible for Iron Aluminum Melting and Casting

Product Description

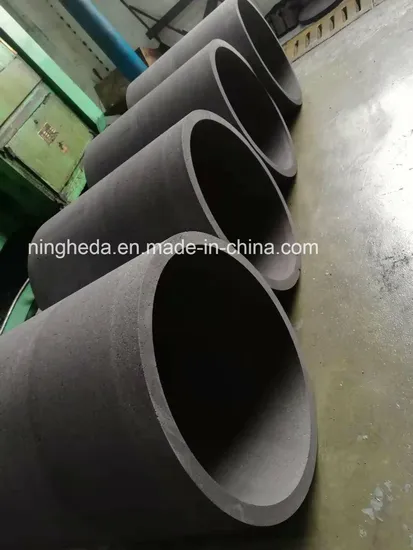

Graphite crucible for Metal Casting
This product is made of high quality artificial graphite by mechanical processing. It is mainly used in all kinds of vacuum resistance furnace, carbon tube furnace, induction furnace, sintering furnace, brazing furnace, ion nitriding furnace, tantalum niobium smelting furnace, vacuum quenching furnace and so on, of which need graphite plate, graphite boat, graphite heater, graphite heating tube, conductive rod, graphite hearth plate, graphite bolt, nut, graphite bracket, graphite mould. Technical Index

Type	MSL80	MSS80	MSL85	MSS85
Grain Size (μm)	25	25	25	25
Bulk Density (≥g/cm3)	1.82	1.82	1.85	1.85
Compressive Strength (≥MPa)	60	60	70	70
Flexural Strength(≥MPa)	30	30	35	35
Porosity(≤%)	21	21	18	18
Specific Resistance(≤μΩm)	12	12	12	12
Ash Content(≤%)	0.08	0.08	0.08	0.08
Shore Hardness	48	48	50	50

The ash content can be purified to 30ppm according to the requirement. The above index data is the standard value, not the guaranteed value.
