Gooda Widely Used Horizontal Machining Center High Precision CNC Machine (GDHM-50VNC)

Product Description

GDHM-80G GooDa CNC Horizontal Machining Center
The Features
· One clamping can realize complex processing in four sides and multiple processes, with strong processing capacity, wide application range and high price
"Bed casting is made of resin sand molding,HT300 strength inoculated cast iron
Than high
· The main castings of the bed body (base, workbench, column, saddle, headstock, etc.) are made of resin sand
· It is suitable for multi-variety processing of complex box parts with holes and high coaxiality requirements in the process of processing
The Advantages

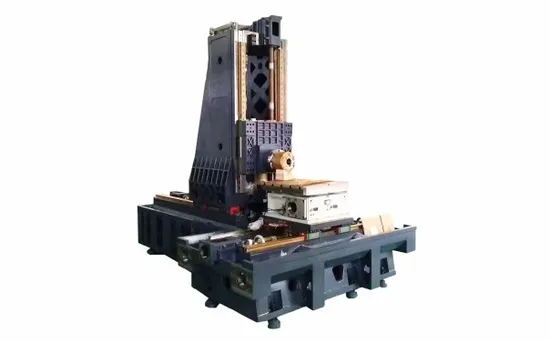

· Design the structure of the one-piece bed, use the finite element analysis to optimize the reasonable reinforcement arrangement and match the M-shape
· Large inertia feeding servo motor, high rigidity ball screw and guide rail, good stability and high precision.
· The reinforcement makes the column and the bed integrated, the performance indexes of each component are guaranteed, and the bed has high rigidity.
GDHM-80G adopt HT300 strength inoculated cast iron has been completely eliminated by secondary annealing, vibration aging and sufficient aging treatment
Can automatically exchange tools, can be clamping four sides of milling, drilling, reaming, boring.
The internal stress produced by manufacturing stress and rough machining ensures good rigidity, high strength and stable structure of the casting
Tapping, end face, boring step hole and other processes;
Long-term high accuracy and stability.

Item		Unit	Specification
Process Range	X axis travel	mm	1300
	Y axis travel	mm	1000
	Z axis travel	mm	1050
	Distance from spindle nose to worktable surface (X axis)	mm	200~1250
	Distance from center of spindle to worktable surface	mm	100~1100
Work Bench	Work bench size	mm	800×800
	MAX Load	kg	3000
	T-Slot	mm	22x160x5
Spindle	Spindle Speed	rpm	6000
	Spindle Taper	-	BT50
	Spindle Motor Power	Kw	15/18.5
Speed	Rapid Moving (X/Y/Z)	m/min	24/24/24
	Rapid Feeding Speed	m/min	10/10/10
Tool Magazine	Tool Magazine Number	pcs	24
	Tool MAX Diameter/length/weight		φ110mm/350mm/15kg
	Tool selection method		any/sequence
	Tool Changing time (from one tool to another)	S	1.8
Machine Accuracy	(X/Y/Z)Positioning Accuracy	mm	0.012
	(X/Y/Z)Re-Positioning Accuracy	mm	0.008
Others	Air pressure	Mpa	0.6~0.8
	Total electrical capacity of the machine	KVA	45
	Machine size(X×Y×Z)	mm	5300×4200×3580
	Machine weight	kg	22500

Machine Main configuration

No	Item	Quantity	Note
1	FANUC 0i-MF system	1
2	Handheld operating unit	1
3	Disc Tool Magazine	1	24 units (optional)
4	Automatic lubrication system	1
5	LED Warning Light	1
6	Spindle blowing device	1
7	Air curtain protection	1
8	Flashlight	1
9	Attached accessories	1
10	Attached Technical agreement	1

Transmission: · Three-axis feeding adopts advanced large inertia feeding servo motor and imported high-rigidity long precision preloaded roller guide
Reduced cutting vibration, torsional, durable, vibration reduction;
Rail and imported high rigidity ball screw, fundamentally solve the workpiece in the process of processing due to thermal deformation

Tool Magazine: The tool magazine manipulator is made of a complete set of imported professional supporting manufacturers' products with reliable quality and stable performance, further improving the reliability of the whole machine. The tool arm type tool magazine has a capacity of 24 tools, with fast tool change time.

General requirements for the Machine
Required environment
Keep the temperature at a balanced level, especially during precise cutting.
Working temperature10ºC~40ºC, when 20ºC, humidity should be around: 40~75%
To keep the static accuracy of the machine within the specified range, the best temperature is within 15ºC~25ºC, and the temperature difference should not exceed ±2ºC/24h.
Power supply voltage: 3-phase, 380V, voltage fluctuation within ±10%, power supply frequency: 50HZ.
If the voltage in the area is unstable, the machine should be equipped with a regulated power supply to ensure the normal operation of the machine tool.
The machine should have a reliable grounding: the grounding wire should be copper wire, the wire diameter should not be less than 10mm², and the grounding resistance should be less than 4 ohms.
In order to ensure the normal working performance of the machine, if the compressed air of the air source does not meet the requirements, a set of air source purification devices (dehumidification, degreasing, filtration) should be in placed before the machine's air intake.
Keep the machine away from direct sunlight, intense vibration, high heat, high-frequency generators and electric welding machines, etc., to avoid machine production failure or loss of machine tool accuracy.
