Precision CNC Drilling Machine for Steel Beam Fabrication

Product Description

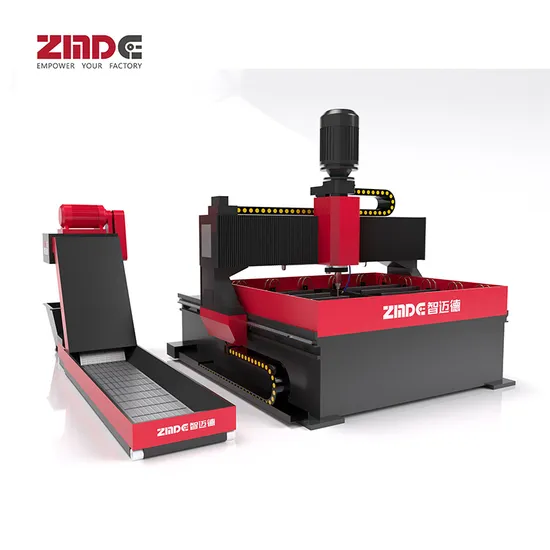

ZMDE Industrial Heavy Duty CNC Drilling Machine Metal Steel Beam Punching Hole Drilling Machine

>Cost-effective and Innovative Equipment <
1. Constructed from premium, solid materials ensuring a low failure rate, significantly reducing maintenance costs. All components including ball screws, linear guide vices, hydraulic parts, electrical parts, servo motors, and frequency converters are sourced from top industry brands.
2. Features CRT display for automatic chip removal, eliminating the need for manual cleaning and saving valuable time.
3. Ensures high-precision operation resulting in high-quality workpieces and reduced consumption of expendable materials.
>Effortless Operation, Maximized Productivity <
1. User-friendly human-machine interface with clear visuals, enabling the generation of automatic machining programs seamlessly.
2. Controlled by advanced CNC and PLC systems for flawless, accurate positioning.
3. Hydraulic clamps secure the workpieces, with operations conveniently managed via foot switch, enhancing efficiency and reducing labor.
4. Equipped with 12 rapid-action hydraulic clamps arranged around the table, allowing simultaneous clamping of four groups of workpieces.
5. Small workpieces can be efficiently clamped at the table's four corners, drastically reducing production preparation time and boosting productivity.
6. The setup allows small workpieces to be clamped at the table corners, significantly minimizing the preparation cycle and maximizing production efficiency.
> Assured Quality, Versatile Applications <
1. Key components such as the gantry, column, and table are constructed from robust materials, with the main machine weighing up to 6300kg for enhanced stability.
2. Versatile across numerous industries, it is an essential piece of machinery for plate processing applications.
3. Accommodates a wide range of drilling diameters from 12mm to 50mm, catering to diverse needs.
> Ideal for Diverse Production Environments <
1. Efficiently manages continuous production of multiple batches of single-type flat workpieces.
2. Capable of handling small-batch production of various workpieces, including different plate shapes such as rectangular, round flange, and polygonal. Can simultaneously process two or four plates of different specifications.
3. Produces multiple layers of thinner sheets in stacks, with a maximum stack height of 100mm for drilled holes.
4. Automated upper computer software manages start and end points for processing, capable of drilling through holes, blind holes, step holes, and chamfers.
> Streamlined Production Process Automation <
1. Integration of line board ensures a high degree of automation, with automatic positioning based on the drilling program.
2. Automatically adjusts the optimal feed rate according to various hole diameters.
3. Facilitates automatic, continuous processing of large hole diameters, achieving one-time processing and forming.
4. Includes an automatic chip removal function for effortless maintenance.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg

Company Profile
Established in 2013, ZMDE Co., Ltd. has cemented its reputation as a pioneering high-tech enterprise specializing in the research, development, manufacturing, sales, and service of intelligent assembly building equipment. Recognized as a national 'small giant' for its specialization and innovation, our core industries encompass the production of cutting-edge steel structure assembly building intelligent industrial mother machines and the development of advanced IoT and intelligent control systems.Our expertise spans intelligent control systems and two primary industrial sectors.
Our headquarters, located in the Lingang New Area of Pudong New District, Shanghai, boasts the state-of-the-art Research Institute of Artificial Intelligence for Assembled Buildings, spreading across a vast 32,000 square meters. This facility is at the heart of our company's management and spearheads the research and development of high-end core technologies, including Artificial Intelligence for Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT).
Our Shandong base, situated in the Weicheng District of Weifang City, is dedicated to the research, development, and production of intelligent industrial mother machines specifically designed for steel beams and walls of assembled buildings. This facility plays a critical role in enhancing the intelligence and efficiency of construction processes.At this base, we focus on creating advanced mother machines to elevate the manufacturing of assembled building components, ensuring robustness and precision.

FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.

2.Q: What are the payment terms?
A: L/C; T/T.

3.Q: How long is the delivery time?
A: 30 Days.

4.Q:How long is the warranty period?
A: 1 Year.(Original Manufacturers. equipment parts can be achieved lifelong maintenance)

---
