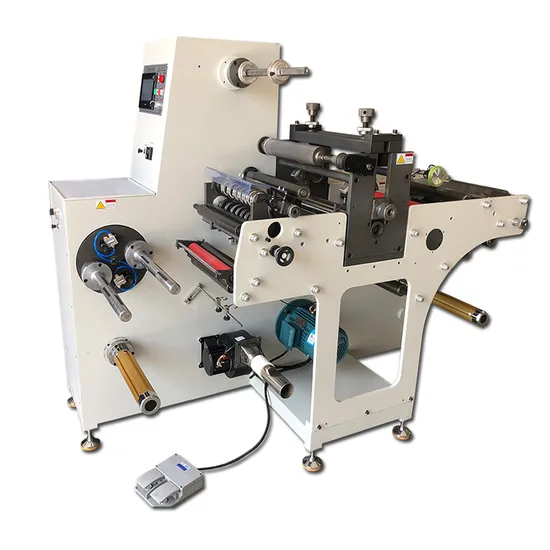

Automatic Slitting and Rewinding for Paper and Film Rotary Die Cutting&Slitting Machine

US$7,500.00-13,500.00 1 Set (MOQ)

Basic Info.

Model NO.
JM320S
Imprinting Type
Rotary
Placing Form of Template
Horizontal
Die Cutting Tool
Steel Plate
Computerized
Computerized
Automatic Grade
Semi-Automatic
Application
Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material, EMI Shielding Materials, Earthquake Products
Transport Package
Export Wooden Case Packing
Specification
1900mm(L) 1000mm(W) 1650mm (H)
Trademark
JIAMING
Origin
Zhejiang, Chain

Product Description

Feature: The machine is suitable for die cutting and slitting the blank selt adhesive labels. It can die cut,slit and rewind the products in one time. It can automatically count the length, stop upon reaching the set quantity.And its unwinding unit is automatically controlled and rectified through a photoelectric cell. The machine is characterized by compact construction,fast speed with high effective precise. Easy operation,stability performance and long term use . *This machine is used for blank labels Product Made from Machine:
Teachnical Specifications:
Max Web Width 320mm
Max Unwinding Dia 500mm
Max Rewinding Dia 500mm
Min&Max die cutter repeat 177-476mm
Max Die cutting Speed 200m/min
Slitting Accuracy ±0.10
Max Slitting Speed 200m/min
Voltage 1P 220V 50HZ
Positioning Precission 2.6kw
Overall Diameter(L×W×H) 1900mm×1000mm×1650mm
Weight 1150KG

Machine Detailed Pic for Reference:

About us
Our company focus on researching and designing(R&D), quality control and after sale service, so we have the ability to provide high quality, reasonable priced products. Since so many years our printing and packaging machines have been well accepted by customers from more than 20 countries.
Packing and Loading of Machine:
