30kw High Frequency Generator for Hf Wood Machine

US$7,000.00 1 set (MOQ)

Basic Info.

Model NO.
HF30-SA
After-Sales Service
1 Year
Product Name
High Frequency Generator
Input Power
40kVA
Output Power
30kw
Output
Two Output
Principle
High Frequency Dielectric Heating
Application
Wood Drying/ Bending/ Gluing
Power
3 Phase, 4 Wires
Frequency
50 Hz
Oscillation
6.78 MHz
Overall Size
1050*950*1900mm
Weight
600kgs
Hf Tube
Included
Transport Package
Seaworthy Packing/ Wooden Case
Specification
20KW
Trademark
SAGA
Origin
Hebei, China
HS Code
8514400090
Production Capacity
100 Sets Per Year

Product Description

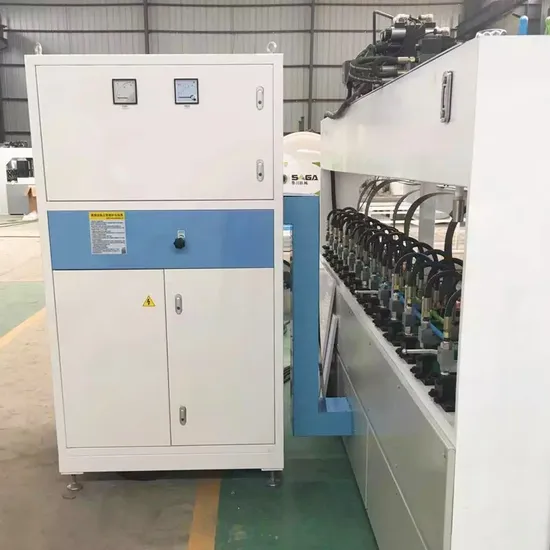

30KW High Frequency Generator For HF Wood Machine
High frequency generator is a plant which can turn normal electric power to high frequency power, appling it to the load equipment or electrode, the water or glue molecule within the work pieces is polarized and rapidly change directions or move following the frequency change of the electron-magnetic power, thus cause suddenly friction, this between molecule makes the temperature raise, the water vaporized and glue bond.
HARDWOOD DRYING CURVED PLYWOOD FORMING WOOD PANEL JOINTING/GLUING
PARAMETER
MODEL HF20-SA HF30-SA HF50-SA
POWER 380V 3 Phase 4 wire 380V 3 Phase 4 wire 380V 3 Phase 4 wire
FREQUENCY 50 Hz 50 Hz 50 Hz
INPUT POWER 30 Kva 40 Kva 70 Kva
OUTPUT POWER 20 KW 30 KW 50 KW
OSCILLATION 6.78 Mhz 6.78 Mhz 6.78 Mhz
PROTECTION Overload protection, Air cooling pressure detection, filament 2 stages, Lose phase protection Overload protection, Air cooling pressure detection, filament 2 stages, Lose phase protection Overload protection, Air cooling pressure detection, filament 2 stages, Lose phase protection
TUNING MODE Variable capacitor Variable capacitor Variable capacitor
COOLING MODE Forced air cooling Forced air cooling Forced air cooling
OUTPUT 1 or 2 output 1 or 2 output 1 or 2 output
OVERALL SIZE 1050*950*1900MM 1050*950*1900MM 1250*1200*2050MM
WEIGHT 500KGS 600KGS 1000KGS
