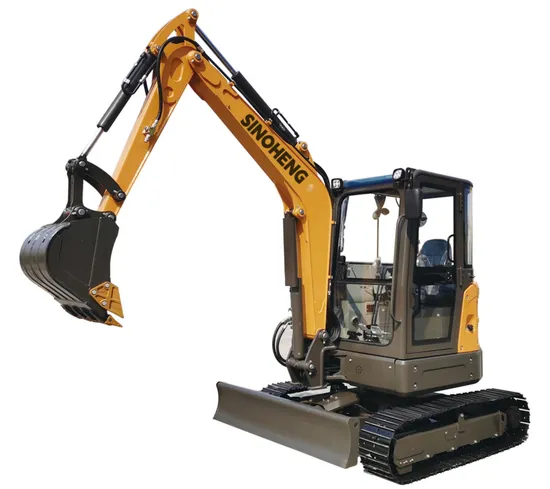

Good Quality Jh35 Crawler Excavator Made in China

Product Description

Product Description
•Crawler excavators provide superior accuracy when digging, lifting and placing heavy materials. Their tracks provide stability and control, reducing the risk of damage to underground utilities or structures during excavation.
•The track distributes weight evenly, allowing the crawler excavator to easily navigate soft, muddy or uneven terrain. They are ideal for off-road events, urban areas and locations with limited space.
•Crawler excavators exert less ground pressure than wheeled excavators. This makes them suitable for sensitive environments such as wetlands, archaeological sites or landscape areas.
•Crawler excavator can be equipped with various accessories such as bucket, hydraulic crusher, grab and auger. This versatile piece enables them to handle different tasks, from digging trenches and foundations to slab removal and forestry work.
Product Parameters

Specifications
Bucket Capacity(m³)	0.12
Swing Speed(rmp)	1-11
Gradeablity(°)	30
Max.Bucket Digging Force(KN)	30
Max.Arm Digging Force(KN)	18
Engine Model	KUBOTAD1703
Power/revolution speed(KW/rmp)	18.2/2200
Tire Model
System Pressure(Mpa)	22.5

Working range
Max.Digging Height(mm)	4540
Max.Dumping Height(mm)	3280
Max.Digging Depth(mm)	3208
Max.Vertical Digging Depth(mm)	2957
Max.Digging Radius(mm)	5480
Min.Swing Radius(mm)	2530
Max.Dozer Blade Lifting Distance(mm)	365
Max.Dozer Blade Cutting Distance(mm)	385

Machine size
Total Length(mm)	4915
Total Width(mm)	1755
Total Height(mm)	2525
Cabin Height(mm)	2290
Axle Base(mm)	1670
Wheel(track)Distance(mm)	1420
Minimum ground clearance(mm)	295
Tail Swing Radius(mm)	870

---
