| US$88.90 | 1,000 Pieces (MOQ) |

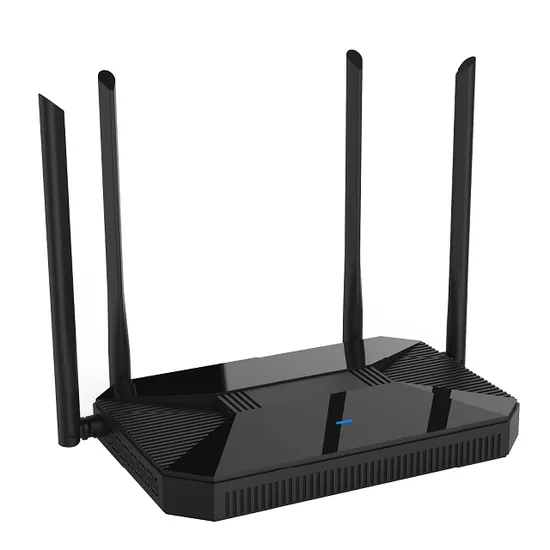

| Model | FR1800-M2 | |||||
| CPU | RTL8197FH + RTL8812BRH + RTL8367RB | |||||
| Flash | 8MB | |||||
| RAM | 64MB | |||||
| Frequency | 2.4GHz: 2400MHz-2484MHz 5.8GHz: 5180MHz~5825MHz | |||||
| Standard | 802.11ac/b/g/n, 2T2R MIMO | |||||
| Data Rate | 1200Mbps | |||||
| Modulation | OFDM = BPSK,QPSK,16-QAM,64-QAM; DSSS = DBPSK,DQPSK,CCK | |||||
| 2.4G RF Power | 802.11b | 11M | 18±2DB | 1M | 20±2DB | |
| 802.11g | 54M | 17±2DB | 6M | 19±2DB | ||
| 802.11n HT20 | MCS7 | 16±2DB | MCS0 | 18±2DB | ||
| 802.11n HT40 | MCS7 | 15±2DB | MCS0 | 17±2DB | ||
| 5G RF Power | 802.11a | 54M | 17±2DB | 6M | 20±2DB | |
| 802.11n HT20 | MCS7 | 16±2DB | MCS0 | 19±2DB | ||
| 802.11n HT40 | MCS7 | 15±2DB | MCS0 | 19±2DB. | ||
| 802.11ac HT80 | MCS9 | 14±2DB | MCS0 | 17±2DB | ||
| 2.4G Receive Sensitivity | 802.11b | 11M | -85dbm | 1M | -94dbm | |
| 802.11g | 54M | -72dbm | 6M | -90dbm | ||
| 802.11n HT20 | MCS7 | -70dbm | MCS0 | -88dbm | ||
| 802.11n HT40 | MCS7 | -68dbm | MCS0 | -86dbm | ||
| 5G Receive Sensitivity | 802.11a | 54M | -74dbm | 6M | -90dbm | |
| 802.11n HT20 | MCS7 | -72dbm | MCS0 . | -88dbm | ||
| 802.11n HT40 | MCS7 | -68dbm | MCS0 . | -86dbm | ||
| 802.11ac HT80 | MCS9 | -58dbm | MCS0 . | -80dbm | ||
| EVM | 2.4G: 802.11b: ≤-10dB; 802.11g: ≤-25dB ; 802.11n: ≤-28dB 5G: 802.11a: ≤-25dB; 802.11n: ≤-28dB; 802.11ac: ≤-32dB | |||||
| Frequency Deviation | ±20ppm | |||||
| Max Users | 32 | |||||
| Size | 218*148*33MM | |||||
| Interface | 3*10/100/1000Mbps LAN ports | |||||
| 1*10/100/1000Mbps WAN port | ||||||
| 1*DC 12V 1A | ||||||
| 1*Reset button: Press in 10 seconds: reset to default settings; | ||||||
| Operation Mode | Gateway, Wi-Fi Repeater, Wireless AP | |||||
| LED Indicator | PWR(Power), WAN, LAN, NET(Ethernet) | |||||
| Antenna | Build in 5dBi high-gain omni antennas | |||||
| Power consume | <9W | |||||
| Environment | Working Temperature: -30°C to 55°C | |||||
| Storage Temperature: -40°C to 70°C | ||||||
| Humidity:5%~95%(Non-condensing) | ||||||
