Product Description
Product Description

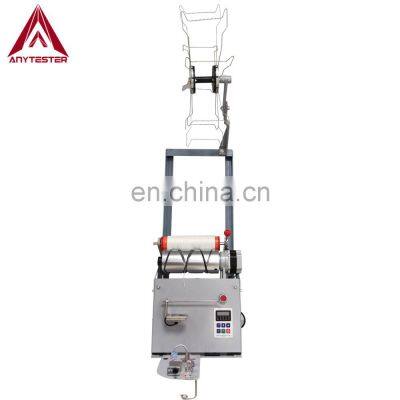

Product DescriptionAT209A Yarn Winding Machine is use to winding the hank yarn, roving, or tube yarn be bobbin yarn. It is widely used to wind cotton yarn, chemical fiber, filament, low stretch yarn.SpecificationModelAT209ASpindle number1Types of windingDrum, RandomMechanical speedUp to 1200m/min (process speed depending on quality of yarn and feed packagesPackage shapeCylindrical or conicalTraverse length147mm,150mm,152mm.154mmPackage bobbin0° 3°30′5°57′9°15′Package diameterUp to φ290 mmPackage weightUp to 3kgPackage density0.2-0.4g/cm3Yarns / countCotton flax, wool, silk, chemical fiber /Ne 6-180Groove drumΦ82*175mmPower consumptionInstalled power:100W/spindlePower consumption:65W/spindleAuto stop while yarn breakWith electronic yarn detector, the spindle will stop when yarn breakPower220V/380V, 50/60HzDimension1270mm×408mm×1510mmWeight89kgDetails & Features★ Double points tension control system with micro motors, uniform yarn tension. It is appropriate for high speed waxing winding and easy to operate.★ This machine can be set the length of winding; When there is broken yarn it will stop automatically; when yarn is fully filled, it will also stop; also, it has the function of slow start.★ High-speed creel with gas spring, which can keep constant winding pressure. The creel is stable and reliable. And it will make the loose bobbin be suitable.★ The machine has the device to protect yarn, our adjustable block yarn sheet metal can prevent the yarn be a mass.★ This machine assemble with XKH grooved drums(0°，3°30’，4°20’，5°57’，9°15’), this kind of Ni-P alloy grooved drum has optimized groove shape which have the advantages of good wear resistance and static elimination.★ We use brushless DC motor with longer axis, it is convenient to adjust the speed ofsingle spindle Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
