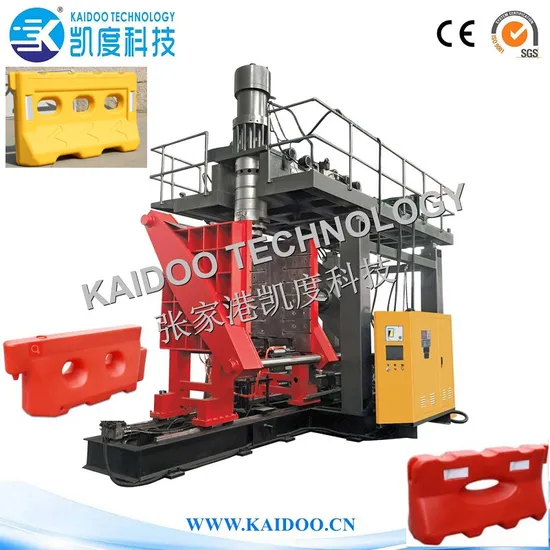

Plastic Safety Barricade/Traffic Barrier/Water Filled Barrier Blow Moulding Machine / Blow Molding Machine

Product Description

BRIEF INTRODUCTION
------------ZHANGJIAGANG KAIDOO PLASTIC TECHNOLOGY CO.,LTD
Kaidoo Technology is located in the beautiful Riverside City - Zhangjiagang. The company use European and American technology, supply automatic blow molding machines,(suitable for the production of 5ML-3000L plastic bottles, plastic buckets, drum,tool box, toys, fuel tanks,table panel,plastic pallet,automobile part and other products), and supply Blow mould ,Injection mould,Auxiliary equipment. The company has a a large number of outstanding skilled workers and engineers with more than 10 years of design and manufacture of various hollow equipment and maintenance services experience.
We firmly believe that only the innovation can promote development, and only through cooperation we can find win-win solution. We are sincerely looking forward to working with you full cooperation!
ENTREPRISE CULTURE
Kaidoo Technology persisted "the talented as well as the staff is the first resources" idea,and "the science and technology is the development of the enterprise source power, the innovation is enterprise's soul" the management idea,in the staff the positive initiative "the unity cooperation,grows together" the team idea ;The initiative " the good faith, is highly effective, is satisfied" the service idea,carries out "the autonomy from, asks really to strive for realism" the staff personal integrity. Through a serious of enterprise culture construction, establishes one to have the cohesive force and the team cooperation spirit, the study high quality staff troop.
WORKSHOP
MACHINE SPECIFICATION

MODEL	KDB120A-PSB (Single station & Single head )
	This model is fixed open-closing and accumulator die head series which can make Max 500L containers,suitable for production of Traffic barrier and so on. Technical characteristics: Hydraulic servo system control, quick action response, energy saving ;

Specification	Technical Parameter
Machine model	KDB120A-PSB
Material	PE,PP
Max container capacity	300Liter
Machine Dimension (LxWXH)	9.6 x 4 x 6.5 m
Machine weight	36 T
Clamping Unit
Mould platen size (WxH)	1400x1750mm
Platen opening stroke	600-1600mm
Max mould size (WxH)	1200x2000mm
Clamping force	1000-1500KN
Power
Oil pump driving power	35 KW
Max driving total power	155 KW
Blow pressure	1 Mpa
Air consumption	2 M3/min
Cooling water pressure	0.5Mpa
Water consumption	120L/min
Average energy consumption	85-100kw
Extruder unit
Screw diameter	120
Screw L/D ratio	25:1
Melting capacity for HDPE	300-380 kg/hour
Number of heating zone	5 zone
Screw heating power	32.5 kw
Extruder motor power	90 kw
Die head (single head)
Number of heating zone for single die head	8 zone
Heating power for single die head	52 KW
Max die-pin diameter	750mm
Accumulator capacity (HDPE)	30L (22.5KG)

---
