Advanced Dual Turret CNC Lathe for Precision Manufacturing

Product Description

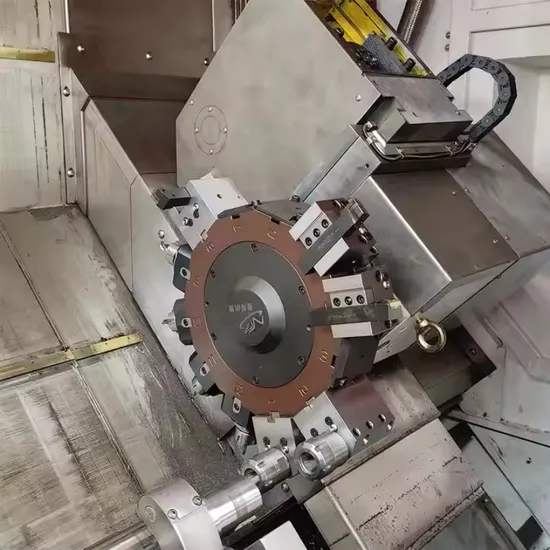

Machine Picture
Machine Introduction
The CNC dual turret lathe is an efficient and high-precision new type of machining equipment, mainly used for mass production and processing of shaft and pipe parts. The workpiece can be milled and turned at both ends simultaneously with one clamping.
Compared with the traditional process of multi process and multi clamping of workpieces, it has the advantages of high production efficiency and high coaxiality of parts.
Machine Applications
Double Head Dual Turret Slant Bed Turning Machine is mainly used for mass production and processing of shaft and pipe parts.

Machine Features
Overall inclined bed design
Super rigidity, extremely smooth chip removal
Automation function
Configure automatic axial positioning, workpiece positioning detection,automated interface, automatic counting and other functions

Spindle
Adopting imported P4 grade precision bearings, it supports strong rigidity, high precision, and stable performance. It adopts hydraulic clamping with strong clamping force
Numerical Control System
Paired with a dual channel bus absolute value servo system, it can be processed without returning to zero when turned on

Machine Specifications

ITEM	UNIT	XSC500A	XSC500B	XSC700C	XSC800C
Number of tool rest stations	pcs	4/8/12	4/8/12	4/8/12	4/8/12
Max.processing length	mm	500	500	700	850
Max.processing diameter	mm	120	160	200	200
Max.spindle speed	mm	2000/1500	2000/1500	2000/1500	2000/1500
Spindle power	kw	7.5/11	7.5/11	7.5/11	7.5/11
X/Z axis rapid movement speed	mm/min	15000	20000	20000	20000

---
