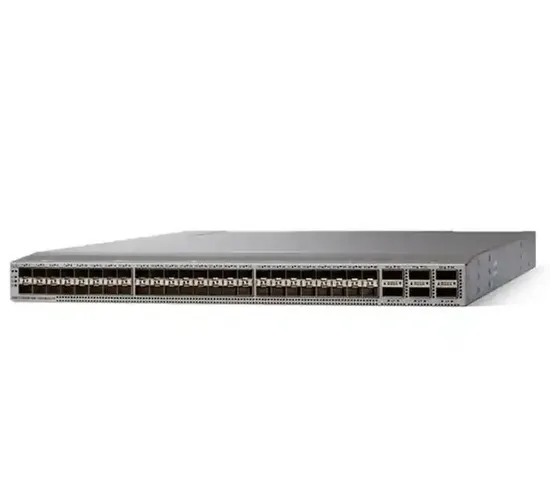

| N9K-C93180YC-FX Specification | |
| Hardware performance and scalability | |
| Ports | 48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports |
| Downlink supported speeds | 1/10/25-Gbps Ethernet 16/32-Gbps Fibre Channel |
| CPU | 6 cores |
| System memory | Up to 32 GB |
| SSD drive | 128 GB |
| System buffer | 40 MB |
| Management ports | 1 RJ-45 port L1 and L2 ports are unused |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (up to 2) | 500W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power (AC/DC) | 260W |
| Maximum power (AC/DC)* | 425W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (High-Voltage AC [HVAC]) | 200 to 277V |
| Input voltage (DC) | -48 to -60V |
| Input voltage (High-Voltage DC [HVDC]) | -240 to -380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 4 |
| Airflow | Port-side intake and exhaust |
| Physical dimensions (H x W x D) | 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
| Acoustics | 57 dBA at 40% fan speed, 68.9 dBA at 70% fan speed, and 77.4 dBA at 100% fan speed |
| RoHS compliance | Yes |
| MTBF | 238,470 hours |
| Environmental properties | |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Nonoperating (storage) temperature | -40 to 158°F (-40 to 70°C) |
| Humidity | 5 to 95% (noncondensing) |
| Altitude | 0 to 13,123 ft (0 to 4000m) |
