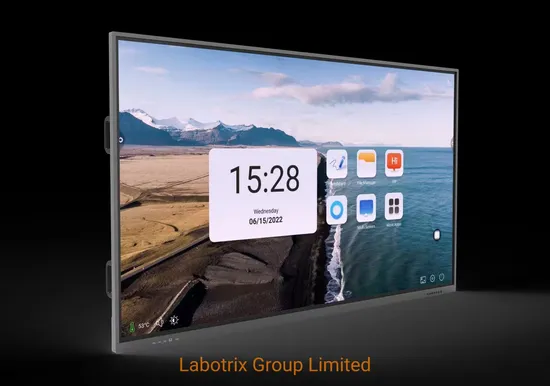

Labotrix multi-touch interactive display panels boast 4K UHD resolution and a 20-point touch-enabled display, bringing live lessons and idea sharing in education and office settings.
Product Description 110" AIO Interactive display panel parameters and featured illustrations
| Dispay Panel |
| Model No. | LTV-H11000A |
| Panel Size | 110 inch |
| Backlight | LED Back Light Display |
| Aspect Ratio | 16:9 |
| Panel Resolution | 3840 x 2160 @ 60Hz |
| Display Area | 2436.48 (H) × 1370.52 (V) mm |
| Pixel Pitch | 0.4935 (H) ×0.4935 (V) mm |
| Brightness(nits) | 350 cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° / 178° |
| Response Time | 8ms |
| Supported Colors | 1.07 Bilion Colors |
| Touch System |
| Detection method | Infrared ray shading detection system |
| Touch tool | Hand or other solid (soft tip) object |
| Accuracy | ±2mm |
| Read speed | More than 125 responses per second |
| Response time | Less than 8 ms |
| Resolution | 32768 x 32768 |
| Interface | 2 |
| Touch driver | plug and play |
| Touch points | 20 points for Android & 20 points for Windows OS |
| Soft hot key | No |
| Glass | 4mm Tempered Anti-Glare Glass |
| Supported OS | Windows 7, 8, 10, 11; Mac OSX, Linux, Andriod |
| Android System |
| System Version | Android 11.0 |
| CPU | Cortex A55 *4 |
| GPU | Mali-G52 |
| RAM | 4GB |
| ROM | 32GB |
| Audio |
| Built-in Speakers | 20W x 2 (L & R speakers) + 20W sub-woofer (optional) |
| Sound Channel | 2.0/ 2.1 (optional) |
| Connectivity |
| Front I/O | Touch USB x 1, HDMI 2.0, up to 3840* 2160@30Hz x 1, USB3.0 blue type A x 2, Type C x 1 |
| Rear I/O | HDMI x 2, VGA x 1, Android USB 2.0 x 2, Ethernet In x 1, Ethernet Out x 1, Touch USB x 1, Ypbpr x 1, AV x 1, RF x 1, SD-card x 1, COAXIAL x 1, AV OUT x 1, RS232 x 1, VGA in (DB45) x 1, VGA Audio in x 1 |
| Audio | 3.5mm Audio in / 3.5mm Audio Out |
| Control | RS-232C / Ethernet |
| Wifi | Bluit-in, Wifi: 802.11 b/g/n, 2.4GHz, AP: 802.11 a/b/g/n/ac 2.4GHz & 5GHz |
| Bluetooth | Bluit-in, 5.0 version, 2.4Hz |
| Physical Specifications |
| Net Weight | 110kg±5kg |
| Gross Weight (Carton) | 144kg±5kg |
| Dimensions | 2500.6(L)*94(T)*1463.8(H)mm |
| Packing Size (Carton) | 2684.6(L)*300(T)*1625.1(H)mm |
| OSD Functions |
| Language | Multi Languages |
| Source Auto Detect Function | Yes |
| OSD Key Lock Function | Yes |
| Freeze Screen | Yes |
| Blank Screen | Yes |
| Power |
| Power Supply | AC 90V ~ 264V (50/60 Hz) |
| Maximum Power Consumption | ≤ 760W |
| Standby | ≤ 0.5W |
| Environment Spec. |
| Storage Temp | -20ºC ~ 60ºC |
| Storage Humidity | 10%RH ~ 90%RH |
| Running Temp | 0ºC ~ 50ºC |
| Running Humidity | 10%RH ~ 90%RH |
| Accessories Included |
| Power cable | Yes, 2M |
| HDMI cable | Optional |
| Remote controller + battery | Yes |
| Touch pen | Yes, 1 piece |
| Software drive | Yes |
| User Manual | Yes |
| OPS Computer (Optional) |
| CPU | Intel® Core™ i5-10400 Processor |
| Processor Base Frequency | 3.2~3.4 GHz |
| Processor Graphics | Intel® HD Graphics 4600 |
| RAM | 4GB / 8GB |
| Storage | Support on board eMMC / SSD 128GB/256GB |
| WiFi | WiFi 802.11 b/g/n/ac |
| LAN | 10/100 mbps Ethernet |
| I/O Port | VGA x 1,HDMI x 1,WIFI x 1,LAN x 1,COM x 1,MIC-IN x 1,LINE-OUT x 1,USB2.0 x 5,USB3.0 x 1 |
| Windows Version | Windows 10 Home 64 bits |
| Wireless Display Receiver (Optional) |
| Function | Miracast, Dlna, AirPlay / AirPlay mirror |
| Wireless Connection | WIFI 802.11 b/g/n ac (2T2R) |
| Supported OS | Android 4.1 Afterward ; IOS 6.0 Afterward ; Win 7 / 8.1 / 10 / 11 (Win7 Require Driver Software) |
| Supported Resolution | 720 / 1080 P |
110" AIO Interactive display panel built with latest android mainboard with faster performance
110" AIO Interactive display panel designed with one power button and rich interfaces for easy setting
