Custom Automatic Slant Bed Operate Flexible Metal Turning CNC Lathe Machine

Product Description

Easy to operate and high rotation precision electromechanical integrated design horizontal CNC lathe
Product Description
Suitable for: general machining manufacturing industry, parts batch, small partsproduction.
Feature

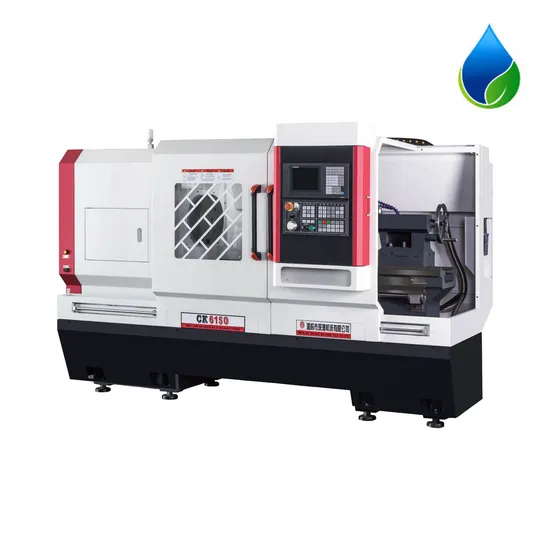

CK6150 horizontal CNC lathe adopts electromechanical one-machine design, beautiful appearancereasonable structure, wide range ofuses, easy to operate. The machine bed guideway adopts high-frequency quenching process, with strong wear resistance and goodaccuracy retention; the spindle system has advanced structure, high rotary accuracy, good vibraion resistance and high cuting performance; the longtudinal and transversal direction adopts ballscrew rotation, with excellent dynamic response and low overall noise. Themachine tool for large, medium and small batches, multi-species, muli-specification parts processing in turn has a strong adaptability.especially the processing of taper, spherical and other specialshaped parts can show its high efficiency, quality and reliability of thesuperiority ofthe stable.
Product Parameters

Machine Structure	Guideway structure	Triangular + Rectangular
	Guideway width mm	380
	Headstock transmission structure	Gear
Machining capacity	Max.rotary diameter of lathe body /mm	450
	Maximum turning diameter of lathe body /mm	400
	Max.turningdiameter on the lathe support board /mm	200
	Max.workpiece length mm	850
	Max.bar through-hole diameter /mm	58
Stroke	X-axis mm	220
	Z-axis mm	850
Feed	X-axis fast v m/min	6
	z-axis fast v m/min	7
	x-axis sm torq N.m	6
	Z-axis sm torq N.m	7.5
Spindle	Spindle end form	A2-6
	Spindle through hole diameter /mm	60
	Spindle hole taper	Metric 80
	Rpm r/min	100-1500
	Spindle shift method	2-speed manual shift
	Main motor power Kw/rpm	7.5/1450
	Chuck form (standard)	Manual three-jaw chucks
	chuck form (optional)	Hydraulic chuck
	chuck size Inch	10"
Toolholders	Turret type	4-station electric tool holder
	Tool size	25x25
Tailstock	Lathe rear seat form	Manual
	Lathe tailstock sleeve diameter /mm	70
	Lathe tailstock sleeve stroke mm	150
	Lathe tailstock sleeve taper	Morse 5
POWER SUPPLY	Total volume Kw	13
	V V	380
	I A	31.5
Specification	WT kg	1800
	SIZE LxWxH(mm)	2200X1400X1680
Other	Optional Buy up	Hydraulic tailstock

Detailed Photos
hot selling product

Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.

---
