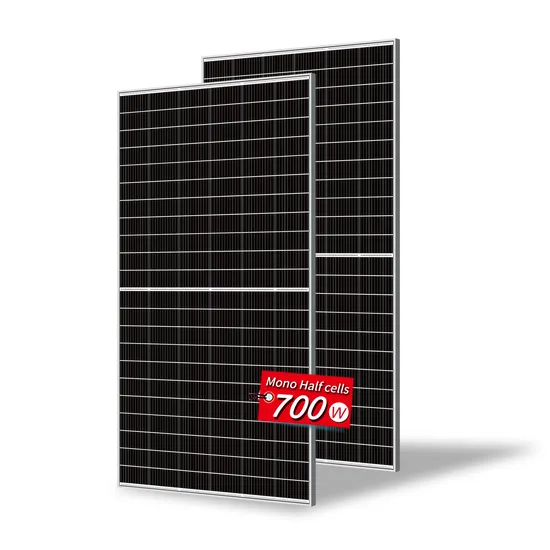

Solar Panel Energy 700W PV Solar Module

US$0.10
10,000-499,999 Pieces
US$0.09
500,000-999,999 Pieces
US$0.08
1,000,000+ Pieces

Basic Info.

Model NO.
RS700M-132HC
Number of Cells
132cells
Application
Home Appliances, Solar Energy Storage Systems
Condition
New
Certification
EST, ISO, CB, CE
Material
Monocrystalline Silicon
Weight
34.4kg
Solar Cell
5bb 6bb 9bb 10bb 12bb Mono
Glass
3.2mm, High Transmission, Ar Coated Heat Strengthe
Junction Box
IP68 Rated
Cable
4mm2; Portrait/Landscape Length
Cell Orientation
132cells(6*22)
Connector
Compatible Mc-4/Male/Female/Fuse
Frame
Silver / Black Anodized Aluminium Alloy
Tpt Backsheet
White/Black Backsheet
OEM
Acceptable
Transport Package
31PCS/Pallet, Wooden Box
Specification
2385*1303*35 mm opt
Trademark
Rosen Solar/OEM/ODM
Origin
China
HS Code
854140
Production Capacity
10000000watt/Week

Packaging & Delivery

Package Size
90.00cm * 90.00cm * 90.00cm
Package Gross Weight
34.500kg

Product Description

Product Description
Technical Specification Data(STC) of Solar Panel
Model of Solar Panel RS650M-132HC RS660M-132HC RS680M-132HC RS690M-132HC RS700M-132HC
Peak Power Watts-Pmax(Wp)* 650 660 680 690 700
Maximum Power Voltage-Vmpp(V) 37.9 38.3 39.1 39.5 39.9
Maximum Power Current-Impp(A) 17.16 17.24 17.40 17.48 17.55
Open Circuit Voltage-Voc(V) 45.0 45.4 46.2 46.8 47.2
Short Circuit Current-Isc(A) 18.39 18.47 18.63 18.71 18.79
Module Efficiency (%) 20.9 21.2 21.9 22.2 22.5
Power Output Tolerance-Pmax(W) 0~+5
Temperature Coefficient of Pmax -0.34%/ºC
Temperature Coefficient of Voc -0.26%/ºC
Temperature Coefficient of Isc 0.05%/ºC
STC Irradiance 1000W/m2, Cell Temperature 25ºC, Air Mass AM1.5. *Measuring tolerance: ±3%.

Detailed Images of Solar Panel
Packing & Delivery
Solar Panel Packing Details : 31pcs per pallets or in wooden box
Delivery Details : 5-7days
Factory of Rosen Solar
Projects of Rosen Solar
