China Full Automatic Bottle Liquid Linear Piston Filling Machine (YBG)

Product Description

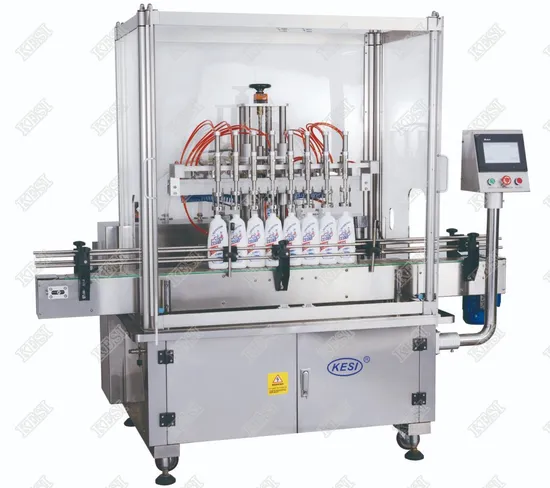

Automatic Bottle Liquid Linear Piston Filling Machine (YBG)
Machine Introduction:
The timed flow volumetric filling machines are controlled by the piston to ensure filling precisely. The product bulk supply is pumped into a holding tank above a set of pneumatically operated valves. Each valve is independently timed by the filler's master computer so that precise amounts of liquid will flow by gravity into the container.
Characteristic
1. Within a single filling cycle can satisfy the large load requirement through several times filling.
2. The interface and PLC control system is easy-to-use.
3. A pneumatic valve to protect bottles from nozzle dripping,
4. Servo nozzle height/dive option available
5. No Product/No Fill (suspend operation)
6. No Bottle/No Fill (suspend operation)
7. Downstream Back-up/No Fill (suspend operation)
Technical Parameters

Speed (8 nozzles)	30----120bottles/min
Container Size	50ml----5000ml
Accuracy	≤±0.5%
Power Supply	220,50(V , Hz)
Power	1kw
Air Pressure	0.4MPa----0.6MPa
Air consumption	0.5m3
Weight	550kg
Dimension	2100mm*1640mm*1670mm
Special needs upon your request

Machine Application:
This linear type piston filling machine cap apply to all kinds of free-stand containers, and can be used widely on various industries, such as pharmaceutical, chemical, cosmetic, agrochemical, light industry, and food & beverage etc..
Our company manufactures various packing lines as follows:
Partnership:
Since 2009, Shanghai Kesi Packaging Machinery Co., Ltd is the only service provider of German LANGGUTH GmbH in China.
CE Certification and ISO9001 Certification.
About KESI:

Established on 1998, Shanghai Kesi Packaging Machinery Co., Ltd has been committed to machinery industry for more than 25 years. Our esteemed customers include Coca Cola, Abbott, AkzoNobel, Jahwa, Johnson, ThermoFisher, Sraash, Tonsan, Gold Norman etc.
Our products include but not limited to: 1. Unscrambler 2. Filling Machine 3. Capping Machine 4. Sealing Machine 5. Labelling Machine
6. Carton Packing Machine
7. Palletizing System
For further information, please visit our company website.

---
