Wall Mount PIR Motion Sensor Delay Smart Micro Light Switch

Product Description

Product Description PIR Auto-off Switch (BRT-308C)1, controling 3 loads2, manual on and auto off3, energy-saving4, environment friendlyFeatures:
BRT-308 is a vacancy sensor switch which utilizes passive infrared (PIR) sensor to detect the heat (in the form of infrared energy) from people moving within a space. It can determine when a space is occupied and turns on or turns off the loads automatically. It is designed for easy installation and retrofit, directly fit into standard wall box with no need for the neutral. 1. Three touch pads to control up to 3 loads;2. Manual override;3. Adjustable delay-off time from 1 minute to 20 minutes4. Good for all kinds of loads (an additional adapter required for capacitive lights such as CFL);5. ABS-V0 flame resistance material; and Classical 86 series design and high quality build.

Specifications:
Voltage	220~240V(50Hz/60Hz)	Operating temperature	0C~30C
Light Load	3*500W	Relative humidity	Non-condensing 20-90%
		Working distance	5m
Installation hole spacing	60mm	Matching wall box	75*75*50mm
Dimension	86*86*23mm	Weight	95g

Detailed Photos

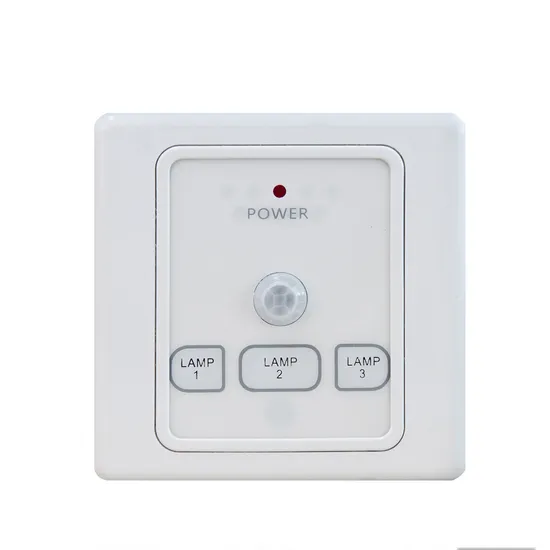

Besides the PIR lens, BRT-308 PIR vacancy sensor switch has an LED power indicator and three touch pads on its front., and terminal blocks on its back.
Cautions:
1. Avoid mounting the sensor switch close to air vents, as the vibration and air flow can reduce the effectiveness of the sensor switch; 2. Avoid installing the sensor switch in an electrical circuit which has other frequent on/off switch or appliance, as those on/off actions could cause false triggers. Applications:
BRT-308 PIR vacancy sensor switch can be can be used for automatically turning off various loads such as lights, fans, appliances, or other kinds of electrical equipment. They are perfect for saving energy and bringing convenience and safety to our daily life and work. They have wide applications at various locations such as stairwells, corridors, washrooms, offices, conference rooms in homes, schools, laboratories, hospitals, offices, etc.
Certifications
FAQ Q1. Are you manufacturer or trader?A: We are 20 years experience manufacturer in Home Appliance PCBAs, Smart Switches and Smart Home Systems.
Q2. What is the warranty of your products?A: We offer 12 month warranty after you received the goods.
Q3. Can I get sample for testing?A: Sample order is acceptable.
Q4. How about the price? If I buy more, can I get better price?A: Of course YES. The more you order, the cheaper unit price you get.
Q5. What about the lead time?A: 7 days for the sample order, 45 days for OEM/ODM orders. Q6. Is it OK to print my logo on your product? What's the MOQ for mass?A: Of course, we can laser your logo on our product, and the MOQ is 1000pcs.

---
