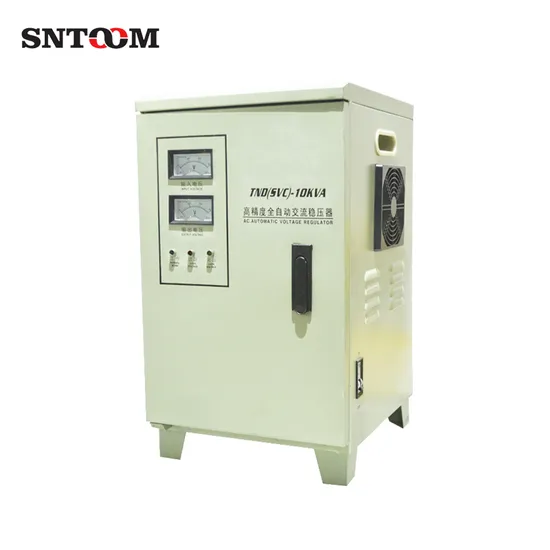

Tnd/SVC Series 0.5~30kVA 220V Single Phase Automatic Voltage Power Regulators Stabilizers

Product Description

SVC series single phase servo type high accuracy full automatic AC voltage regulator adopts the international advanced technology and intelligent CPU centralized control technology. It has beautiful design,easy to moving,large capacity, etc. which is composed of servo motor, control circuit and compensator. All products have over voltage, delay, temperature and error production and also voltage two-way indication, which make the function of the product more perfect and reliable. The stabilizer widely used in the household, industrial and agricultural production etc.
Advantage:
•Microprocessor control
•Stepless voltage regulation over a wide range
•The high output voltage accuracy (220V ±1.5%)
•Surge protection
•Protection against short circuit & overheating
•Differentiation and fault indication
•Informative meter display
•Modern design
•urge protection up to 300 V
•High speed regulation
•The multistage defense
Product Parameter

Model	SVC-500VA	SVC-1000VA	SVC-1500VA	SVC-2000VA	SVC-3000VA	SVC-5000VA	SVC-8000VA	SVC-10000VA
Power capacity	400W	800W	1200W	1600W	2400W	4000W	6400W	8000W
Input voltage	AC 140-260V
Output voltage	220V±1.5%or3.5%
Phase	Single Phase
Frequency	50-60Hz
Adjust time	1 second
Type of stabilization	Electromechanical
Display	Meter display
Protection over voltage	250±2V
Protection lack voltage	185±2V
Mode Bypass	No	No	No	No	Yes	Yes	Yes	Yes
Efficiency	98%
Type of connection	Euro plug/ earthing-pin	Euro plug/ earthing-pin	Euro plug/ earthing-pin	Euro plug/ earthing-pin	Terminal block	Terminal block	Terminal block	Terminal block
Degree of protection	IP20
Delay	3 second
Temperature protection	110°C±10°C
Ambient Temperature	-10~+45°C
Relative humidity	80%
Waveform distortion	No additional wave form distortion
Dimension of device (L*W*H)(mm)	190*170*145	210*205*165	210*205*165	275*245*215	305*245*215	365*245*215	485*280*240	485*280*240
Weight of device	4.1Kg	5.7Kg	6.2Kg	9.1Kg	11.5Kg	16.3Kg	25.4Kg	28.4Kg

OEM Services 1. Logo
Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
2. Label
Please offer us your own model numbers.
3. Manual
Please offer us the finished manual file that can be printed directly.
Lead Time
1.Sample orders will be delivered from our factory within 3-5 working days.
2.General orders will be delivered from our factory within 7-15 working days.
3.Large orders will be delivered from our factory within 45 working days at most.
Shipment
1.By EMS,DHL,FedEx,TNT,UPS or other Express.
2.By our forwarding agent(by Air or by Sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
Our Company
YUEQING SHUNTONG IMP&EXP CO.,LTD is one of subsidiary of SHUNTONG ELECTRIC CO.,LTD , focus on import and export business.

SHUNTONG ELECTRIC CO.,LTD is a large new technical professional manufactor on security products such as warning lights, siren ,audible visual alarm, voltage stabilize & regulator and so on. It is one of the member of China Supply Institute , the member of professional institute of "Household AC automatic voltage regulator"
After so many years of developing and management , now Shuntong has become one of the best enterprises with quickly growing up in security field. The products are widely exported to over 50 countries . We hold a good share in market because of the good quality and services . we won a perfect reputation from users.
Shuntong staff insist on studying and trying to promote market based on technology and continue to innovate the service for society .We emphasize technical management for fast evelopment.
FAQ Q 1.What's the payment term?
A. We accept TT,LC,Western Union,Paypal.
Q 2.What is the delivery time?
A. It depends on order quantity,usually it will take about 3-5 days for sample production.
Q 3.What's the package used for?
A. For the small capacity,will use carton,but for big capacity,we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo?
A.It's no problem,we accept OEM service.
Q 5.What's your production capacity for one month?
A. Our month capacity can reach near 500-3000pcs for the most of our model.
Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. What kind of certificates you have?
A. Our company has ISO9001,CE, RoHS,SGS etc.

---
