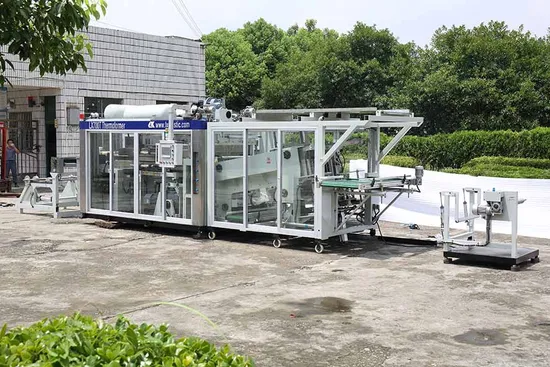

Plastic Cup Tilting Thermoforming Forming Line

Product Description

Product Description
Brief By taking advantage of tilting movement of the forming table, stacking directly and precisely from mould,plastic cup thermoforming line produces plastic disposable cups, containers , lids, and trays etc. completely automatically with forming, cutting, stacking ,counting, conveying ,packing and scrap grinding in one operation cycle
esign Feature .Pick-up cup stacker , Brush type stacker and 6axes robot stacker at request with plastic cup thermoforming line.
. Achieving 40cycles/min with reliable Germany-4-cam-system driven by Servo
.Servo Plug assist minimizing energy consumption and improving quality of items
.Precise index accuracy utilizing servo drive system, minimizing plastic scrap
.Accessing to all digitalized functions by pressing touch screen
.26 individual controlled temperature zones ensures precise temperature accuracy and easy operation
.Cam-controlled drive technology ensures 100% precise repetition of each cycle
.Independent electric cabinet avoiding damage caused by any vibration
.Automatic central lubrication and chain oiling
.Sheet Anti-sag on oven
.Highly stressed parts are of very robust design, with casting of forming tables
.Little maintenance effort required and long intervals between maintenances
.Most of Components are from multi-national suppliers assures a reliability and worldwide compatibility

Useful Optional Items for Tilt-mold thermoforming machine

In-line Grinder with cyclone

Traveling crane for easy tool-change

Auto Cup packer

PP Pre-heater

Tooling for plastic cup thermoforming line

---
