US$20,000.00-40,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Surface Grinding Machine
Processing Object
Surface
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
GS, CE, RoHS, ISO 9001
Transport Package
Wooden/Iron Bracket/Wooden Box
Specification
3600*2750*1880mm
Origin
Changzhou, Jiangsu, China
Production Capacity
3000set/Year
Packaging & Delivery
Package Size
360.00cm * 275.00cm * 188.00cm
Package Gross Weight
3000.000kg
Product Description

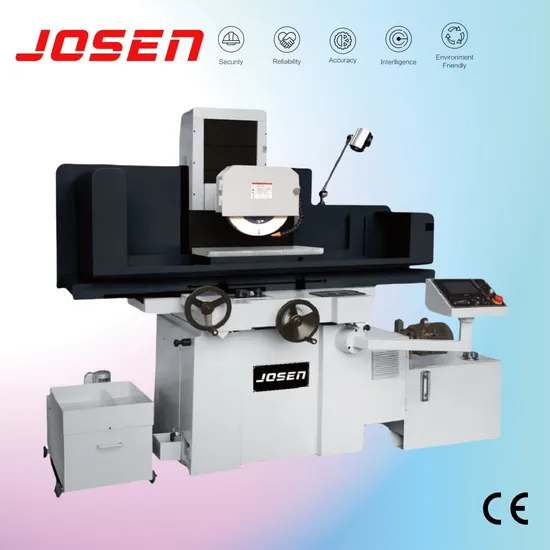

JOSEN FGM-84AHD Type,heavy cutting, Fully Automatic Surface Grinder
Product Description
Basic Info
Standard Configuration
Serial number | Name |
1 | Grinding wheels (white steel jade, φ355x20-40xφ127) |
2 | Grinding wheel flange |
3 | Grinding wheel repair pen and base |
4 | Grinding wheel balancing frame |
5 | Grinding wheel balancing bar |
6 | Work light |
7 | Leveling mats |
8 | Flushing system |
9 | Tools and Toolbox |
10 | Ordinary electromagnetic suction cup (800*400) |
Product Specification
Technical parameters (TECHNICAL PARAMETERS) | Unit(unit) | FGM-84AHD |
Processing capacity | Table size) | mm | 800X400 |
Maximum grinding length | mm | 920 |
Maximum grinding width | mm | 450 |
Maximum distance spindle to table | mm | 580 |
Maximum table bear the weight(including disk) | kgs | 700 |
Table | Table T-slot | mm*N | 14x3 |
Table speed | m/min | 5-25 |
Front and rear handwheel feed | One cell (A grid) | mm | 0.02 |
One lap (Lap) | mm | 5 |
Front and rear automatic feed | mm | 0.1-10 |
Front and rear rapid movement (Front and rear fast-moving) | 50Hz | mm | 990 |
60Hz | mm | 1190 |
Grinding wheel | Grinding wheel size | mm | φ355x20-40xφ127 |
Spindle speed | 50Hz | R.pm | 1450 |
60Hz | R.pm | 3420 |
Upper and lower structure (The vertical structure) | The maxmum amount of movement | mm | |
On the handwheel infeed | One cell (A grid) A rotary (A rotary) | mm | 0.001 |
mm | 0.5 |
Automatic feed rate | mm | 0.005-0.025 |
Fast moving up and down volume | mm/min | 230 |
Motor | Spindle motor | HP | 7.5 |
Vertical drive motor | HP | 80W |
Hydraulic motor | HP | 3 |
Motor flush | Hp | 1/4 |
Backward driviing motor | HP | 80W |
Size(Packing size) | Machine height | mm | 1880 |
Covers an area of | mm | 3600x2750 |
Net weight | Kg | 2800 |
Gross weight | Kg | 3000 |
Major Component Suppliers
Serial number | Component name | Brand |
1 | Spindle motor | Tomita / Datong |
2 | Ball screw | AHK |
3 | Servo motor and servo driver | Hogawa |
4 | Main electrical components | Tend / Taian |
5 | Centralized lubrication system | Shengxiang |
6 | Magnetic controller | Chen Ming |
7 | PLC controller | Hogawa |
8 | Electromagnetic suction cups | Wick |
9 | Spindle assembly | Fomburg |
Our Advantages
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Detailed Photos
Company Profile
Packaging & Shipping
FAQ
1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
A:We provide one year warranty, if any parts broken, we will send you a new one for free.
7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.
>>
