US$56.00-62.00
|
1 Piece
(MOQ)
|
Basic Info.
Network Scanning
Not Support Network
Interface Type
RS232, USB
Application
Commercial Application
Image Sensor
1280px*800px CMOS
Ambient Light Intensity
0~100000 Lux
Resolution
1d ≥3mil 2D ≥9mil
Weight
USB:228g RS232: 261g
Notification
Beep, LED Indicator
Operating Temperature
-20c~+50c
Storage Temperature
-40c~+70c
Humidity
5%~95% (Non-Condensing)
Transport Package
General Packing
Specification
19.2*12.8*11cm
Production Capacity
20000 Units/Month
Product Description

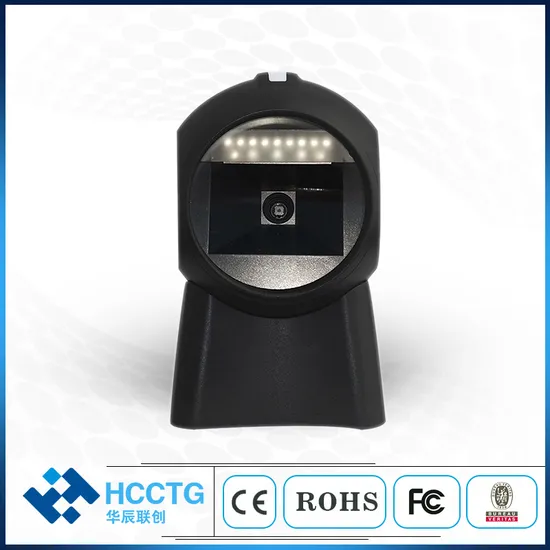

2D Scanning Platform HS-7301HD
General
HS-7301HD is a multi-megapixel 2D scanning platform, which can quickly identify all kinds of 1D codes and mainstream 2D codes, and has excellent bar code reading ability. Powerful data editing function, can read the data for preprocessing. Compatible with WIN XP, WIN7, WIN10, IOS, Android, IPC, server and other devices, plug and play, simple and convenient.
Applicable to the convenience cashier desk, customer service desk, library, clothing chain, catering, express storage, ticket inspection window, O2O application places, etc.
Specification
| Performance parameters |
| Image sensor | CMOS |
| DPI(W*H) | 1280px*800px |
| Floodlight | Red LED |
| Read code system | 1D: UPC A , UPC E , EAN 8 , EAN 13, Code 128 , Code 39 , Code 93,Codabar , Plessey , MSI,Interleaved 2 of 5 ,Pharmacode |
| 2D: PDF 417, Micro PDF 417, Data Matrix , QR Code , Micro QR, Aztec,DotCode |
| Accuracy | 1D ≥3mil 2D ≥9mil |
| Contrast ratio | ≥20% |
| Sensitivity | Tilt ±60° |
| Rotate 360° |
| Deflection ±60° |
| Typical reading accuracy |
| 1D EAN 13 | 5mil 0-60mm |
| 13mil 0-180mm |
2D QR Code
(10bit) | 15mil 0-140mm |
| 30mil 0-230mm |
| Field of view angle | Level:58° Vvertical:45° |
| Prompt mode | BEEP,LED |
| Data interface | USB KBW ,USB CDC,USB HID POS,RS232,TTL 232 |
| Electrical parameters |
| Working voltage | 5V±3% |
| Working current | 210mA |
| Standby current | 145mA |
| Sleep current | 120mA |
| Environmental parameters |
| Working temperature | 0ºC ~ +50ºC |
| Storage temperature | -40ºC ~ +70ºC |
| Relative humidity | 5% ~ 95%(RH) |
| Ambient lighting | 0~86,000Lux |
| Physical parameters |
| Cable standards | USB,RS 232,TTL |
| Product size | 89(W)*108(D)*143(H)mm |
| Weight | 242g |
>>
