Match in Animal Feed Plant Big Hopper Feed Mixer with Good Price

Product Description

Match In Animal Feed Plant Big Hopper Feed Mixer With Good Price
Match In Animal Feed Plant Big Hopper Feed Mixer With Good Price ( Double Shaft mixer) Drawing :

Match In Animal Feed Plant Big Hopper Feed Mixer With Good Price Features:
1. Wide applied to feedstuff, food, chemical and fertilizer industry.
2. Short mixing period, 30-120s is enough for every batch of material.
3. High homogeneous degree, CV ≤5%, no material segregation.
4. Full-bottom type of material discharging, quick and less material residue.
5. Equipped with air return duct which ensure no powder leakage and protect working environment.
6. Atomizing nozzle can be customized if there is need to add molasses, oils & fats and other liquids.
7. Low energy consumption. 3/5 energy saving compared with other feed mixer.
8. Three materials discharging ways: manual operation, motor-drive and pneumatic discharging methods.
Match In Animal Feed Plant Big Hopper Feed Mixer With Good Price Dimension :

Model	A(mm)	B(mm)	C(mm)
SSHJ1( 500KG )	1990	1445	1885
SSHJ2( 1000KG )	2500	1600	2170
SSHJ4( 2000KG )	2800	2000	3021

Match In Animal Feed Plant Big Hopper Feed Mixer With Good Price ( Double Shaft Mixer) Technical Data:

Model	Effective Volume	Mixing Volume	Mixing Time	Mixing Evenness(CV%≤)	Power(KW)
SSHJ0.5	0.5m³	250kg	30~120s	5	5.5/7.5
SSHJ1	1m³	500kg	30~120s	5	11/15
SSHJ2	2m³	1000kg	30~120s	5	15/18.5
SSHJ4	4m³	2000kg	30~120s	5	22/30
SSHJ6	6m³	3000kg	30~120s	5	37/45

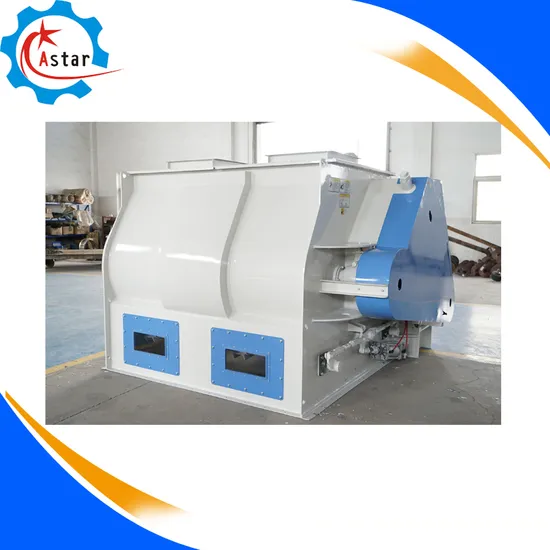

Match In Animal Feed Plant Big Hopper Feed Mixer With Good Price More Photos:
Match In Animal Feed Plant Big Hopper Feed Mixer With Good Price (Single Shaft Mixer):

	Effective volume	Each batch loading	Each batch mixing time	Uniformity	Power
Model	M3	KG	Min	CV%≤	KW
SLHY0.5	0.5	250	3-6	7	5.5
SLHY1	1	500	3-6	7	11
SLHY2	2	1000	3-6	7	18.5
SLHY4	4	2000	3-6	7	30
SLHY6	6	3000	3-6	7	37
SLHY8	8	4000	3-6	7	45

Any more information you need Match In Animal Feed Plant Big Hopper Feed Mixer With Good Price , please feel free to contact with us.

Mrs Winni
Chongqing Qiaoxing Machinery & Equipment Company
Website: qiaoxingmachinery.en.made-in-china.com
Add: 4-6-88, No. 319 of Haier Road in Jiangbei District,Chongqing, China

---
