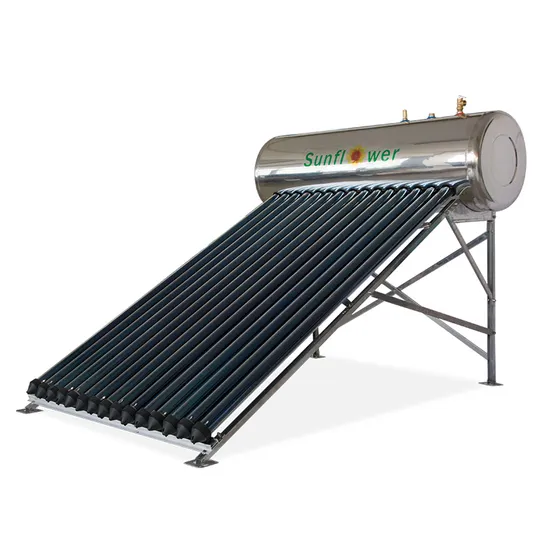

200L Integrated High Pressure Solar Hot Water Heater with Heat Pipe for Residential House

Product Description

200L Integrated High Pressure Solar Hot Water Heater with Heat Pipe for Residential House SFH200H Integrated High Pressure Solar Water Heater The SFH200H is a pressurized solar water heater that utilizes the high absorption ratio and low emissivity of the solar vacuum collector tube to convert the absorbed solar radiant energy into heat energy, which is inserted into the vacuum tube. The phase change heat transfer of the superconducting heat pipe quickly transfers heat energy into the water tank, gradually increasing the temperature of the entire water tank. The solar vacuum collector tube has the ability to naturally track the sunlight. As long as there is solar auxiliary radiation, the vacuum tube can collect heat immediately; because the phase change superconducting tube has one-way heat transfer characteristics, even in the alpine region, it can run efficiently all the year round
Size of Product
1. Solar water heater tank with pressure design, working pressure up to 0.6Mpa.
2. Hot water outlet pressure is equal to the running water pressure, bring you most vivid enjoy of shower and bath
3. Using phase change heat transfer and natural circulation, 100% solar energy, no running costs.
4. Solar collector has double vacuum glass tube, high thermal efficiency, long service life.
5. There is no water inside vacuum tube even in the extreme cold weather, the vacuum tube will not crack; solve the problem of the decline in thermal efficiency caused by water scale; solve the problem of water leakage caused by explosion or silicone ring aging ;
6. Superconducting heat pipe one-way heat transfer, small capacity, low start temperature, fast heat transfer
7. Superconducting heat pipe has good resistance to low temperature and extreme cold weather, suitable for use in cold areas;
8. If parts of vacuum tubes of solar water heater are broken, no water leakage, the whole system can work as normal.
9. The plug-in connection between the solar collector tube and the insulated water tank is very easy to install.
10. The cost of the parts is low, no post maintenance is required, and no expensive maintenance costs are incurred.

SFH200H can produce 200L of hot water from 55°C to 65°C per day for 4-6 people. This solar water heater is a high-efficiency heat pipe integrated structure, 100% solar energy, natural circulation, high pressure hot water, and more relaxing bathing.

Model	SFH200H
Capacity	200L
The Number of users	4-6 people
Inner tank	SUS304 diameter 360mm, thickness 1.2mm
Outer tank	Stainless steel,diameter 470mm
Welding procedure	Automatic double - sided argon gas protection welding
Insulation	Polyurethane 55mm, temperature drop 2ºC/12h
Brackets	Stainless steel 1.2mm,20°/30°/40°/45°
Solar vacuum tubes	net aperture area: 1.51 m2quantity&specifications:16 pcs*58*1800mmmaterial:3.3 high borosilicate glasscoating:AL/N/AL,AL/N/AL/SS/CUAbsorption rate >92%Reflectivity <8%
Heat efficiency	G=1000W/m2, temperature rise 45ºC/day
Package/volume/weight	Carton/0.67CBM/93KG
Packing quantity	45/20GP, 91/40GP, 106/40HQ

Feature
Natural Circulation&100% Solar Energy, No Operating Costs, Reduce Your Energy Costs With phase change heat transfer and natural circulation, 100% solar energy, no operating costs.Efficient heat pipe&Integrated System, Higher Thermal Efficiency&Faster Heat Transfer, Bring You More Hot Water Solar vacuum collector tube absorbs solar energy through high-efficiency AL/N/AL coating and converts it into usable heat in double layer The vacuuming process between the glass can effectively prevent heat loss. The superconducting heat pipe has one-way heat transfer, small capacity, low starting temperature and fast heat transfer; the heat pipe is an evaporation-condensing heat transfer device, which depends on the tube. A change in the state of the working medium to achieve heat transfer. When one end of the heat pipe is heated, the working medium evaporates, and after evaporation, the steam flows to the other end, and when it is cold, heat is released to the heat radiating area. The condensing heat reflux depends on the capillary force and gravity, and continues to be heated and vaporized to reciprocate the cycle, transferring a large amount of heat from the heating zone to the reciprocating cycle of the heat dissipating area. Heat transfer is achieved by the medium of the phase change process.The superconducting heat pipe not only has a fast starting speed, but also has excellent low temperature resistance. -35 ° C can work normally, is the best choice in the cold region.Pressurized Water Tank, Releasing High-pressure Hot Water, Comfortable Shower&Bath The solar water heater water tank adopts pressure design, and the hot water outlet pressure is equal to the tap water pressure, bringing you the best bathing experience (enjoy)No Water in the Tube, No Risk of Leakage of the Tube, Low Maintenance There is no water in the vacuum tube, the vacuum tube will not break and will not leak; the scale will not be generated in the vacuum tube, and the heat efficiency can be maintained for a long time.
