Product Overview

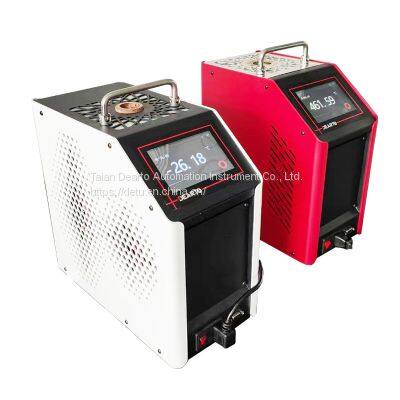

DTG low temperature portable intelligent dry block calibrator, simple operation, light and portable, accurate temperature control,suitable for laboratory and industrial site temperature calibration / measurement; its calibration temperature range can be from -35 ℃ to 150 ℃, the average temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. The technology of temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load performance and hysteresis are all at the domestic advanced level. Widely used in machinery,shipbuilding,chemical industry, food, electricity, medicine and other industries.
FEATURES AT A GLANCE
Operation interface
Aluminum alloy dry temperature block, precise fit, falling smoothly and slowly
Product Paramenters
Model
| DTG-35E
|
Temperature range
| -35℃~150℃
|
Heat source
| Semiconductor cooling and heating
|
Control method
| Touch screen
|
Display resolution
| 0.001℃
|
Standard dry block insertion aperture
| Φ4,Φ6,Φ7,Φ10 When ordering, please indicate the insertion depth of the inspected sensor and the outer diameter of the inspected sensor (customization support)
|
Horizontal temperature field
| ≤±0.1℃
|
Vertical temperature field
| Within 30mm from the bottom of the well ≤1.0 ℃
|
Well depth
| 170mm
|
Dimensions
| 280 x 165 x 280 mm
|
Power supply
| 220V/50Hz
|
