U650 CNC Lathe Machine with Fanuc and 24-Tool Capacity

Product Description

Product Description
Product Parameters

Item	Unit	U650
Travels
X-axis	mm	800
Y-axis	mm	520
Z-axis	mm	500
B rotation range of tilt axis	°	±120
Rotation range of axis C	°	360
B/C axis positioning (VDI3441)	"	10
B/C axis repeatability (VDI3441)	"	4
Distance from spindle center to column guide surface	mm	187
Distance from spindle end to worktable	mm	150-650
Worktable
Worktable area	mm	Φ650
Reference aperture	mm	Φ50H8
T-slots width	mm	14H8
Maximum machining workpiece volume	mm	Φ650*(100+R325)L
Max. weight on table (45-90°/horizontal)	Kg	300
Spindle
Spindle speed	rpm
Taper of spindle nose		BT40
ATC Auto Tool Magazine
Tool taper		BT40
Magazine type		Mechanical cutter arm type
Tools Capacity	Pcs	24T
Maximum tool diameter (no adjacent tool)	mm	75/150
Maximum tool length	mm	300
Maximum tool weight	kg	7
VDI3441 (JISB6338)
Positioning	mm	P0.008(±0.003/300)
Repeatability	mm	Ps0.006(±0.002)
Basic parameters
Spindle motor	kw	7.5/11
X/Y/Z axis motor	kw	4.0/4.0/7.0
B/C axis motor	kw	12.6/6.3
X/Y/Z axis rapid speed	m/min	24/24/24
B/C axis rapid speed	rpm	60/100
Feed rate	mm/min	1-12000
Controller	FANUC	0i-MF
Power requersted	KVA	45
Air consumption	Kg/cm²	6
Machine weight	Kg	10000
Water tank capacity	L	350L
Dimension(L/W/h)	mm	4516*2931*3674

Standard proximity and function			Optional proximity and function
1.Siemens840B system(Optional)		13.Transformer	1. Optical ruler
		14.Water gun	2. Tool length measurement tm26D
2.BT40-150 inclined spindle on 15000rpm		15.Air gun	3.Workpiece measurement OMP60
3.Oil coolant system		16.Rigid tapping	4.Ball gauge for calibration
4. Spindle blushing		17.Manual loosening device	5. Workbench center correction software
5.Cutting coolant system			6. HSK-A63 spindle 15000rpm/20000rpm
6.Tank and waterbox			7.40 pcs magazine
7.Automatic lubrication system			8.Blowing cooling
8. Telescopic cover of triaxial rail			9. Coolant temperature controller
9.Electric box air conditioner			10.Oil mist collector interface (diameter 200mm)
10.Handwheel			11. Air dryer
11.Work light			12. Bonded anchor bolt
12.Warm light			13. Metal filter housing of air dryer

OUT LOOK SIZE

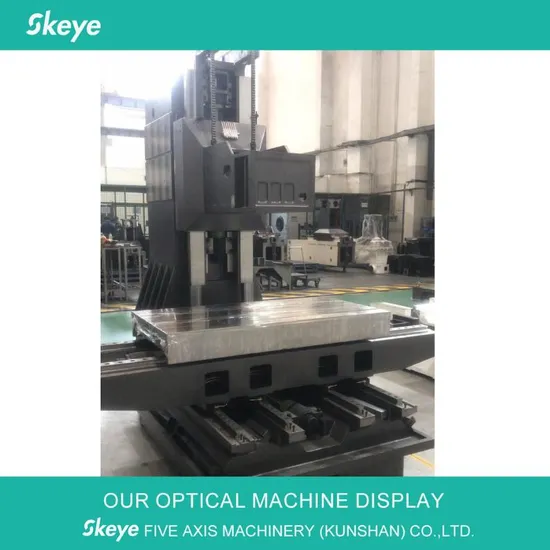

Detailed Photos
Company Profile
Packaging & Shipping
Certifications
FAQ
Q1: How is the warranty?
A1: Enjoy peace of mind with our comprehensive 12-month warranty from the BL date, ensuring that your investment is protected.
Q2: Can we visit your factory before order?
A2: Absolutely! We warmly welcome both new and old friends to tour our factory. We are pleased to offer transportation from the station or airport and assist with ticket and accommodation arrangements, ensuring a comfortable and informative visit.
Q3: Do you have a stock?
A3: While we primarily produce machines to order, we occasionally have a few samples available during fair months, allowing for immediate exploration of our advanced machinery.
Q4: What's the MOQ?
A4: Just one set is all it takes to begin experiencing the exceptional capabilities of our CNC machinery.
Q5: How about your quality?
A5: Our commitment to quality is unwavering, evidenced by our ISO9001:2008, ISO14001, and OHSAS18001 certifications. With adherence to CE, GS, EMS, and UL standards, our products are trusted globally, exported to over 60 countries, and celebrated for their superior quality and reliability.
Q6: Do you have professional engineers?
A6: Yes, our skilled engineers and designers stand ready to provide exceptional OEM services, ensuring that each product meets your precise specifications.
Q7: Can you provide customized machines?
A7: Indeed, we specialize in crafting customized machines tailored to your unique needs, ensuring a perfect match for your operational requirements.

---
