CE Approved 14m 16m Hydraulic Spider Man Lift Towable Telescopic Boom Lift

Product Description

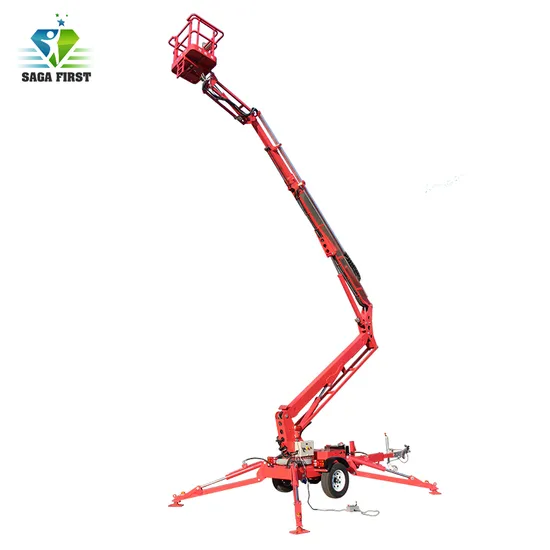

Ce Approved 14m 16m Hydraulic Spider Man Lift Towable Telescopic Boom Lift
Towable Boom Lift is one of the most ideal aerial lift platform for both indoors and outdoors maintenance work. It can rotate 360 degree in the air and platform height is from 10m to 16m. It can be used in tight space because of its company structure. It is very easy and convenient to be trailed by car or tractor anywhere. It is widely used in neighborhood unit, road light maintenance, factories high place maintenance, construction site and so on.
Control panels:
Four support legs control panels
Lifting and Rotating control panel on the body
Lifting and rotating controls on the platform
Operator can control towable boom lift no matter he is on the ground rather than on the platform.
Product Features:
1.360degrees rotation of the arm
2.Sealing parts use the Japan NOK brand, guarantee that the products run 300,000 times without leakage or damage
3.Cylinder outlet is equipped with automatic shut-off valve
4.Equipped with emergency dropping device
5.The machine has two sets of control system, one on the machine, one on the floor, easy and convenient to operate, safe and flexible
6.The rotating parts are equipped with lubricated bearing and grease cup,flexible rotation without noise
7.Equipped with sliding track rollers, reducing the rocking and vibration and ensures the smooth up-down

Three kinds of Power:
1. Diesel/Gasoline
2. Battery
3. AC

Safety Precautions:
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
4. Anti-dropping device: Prevent falling of platform
Specifications:

Model Type	TBL-10A	TBL-12A	TBL-14A	TBL-16A
Lifting height	10M	12M	14M	16M
Working height	12M	14M	16M	18M
Load capacity	200KG
Platform size	0.9*0.7M
Working radius	5M	6.5M	8M	10.5M
Net Weight	1855KG	2050KG	2500KG	2800KG
Overall Size( L*W*H)	6.65*1.6*2.05M	7.75*1.7*2.2M	6.5*1.7*2.2M	7*1.7*2.2M
Wind Resistance Level	<=5
20'/40' Container Loading Quantity	20'/1set 40'/2sets	20'/1set 40'/2sets	40'/1set 40'/2sets	40'/1set 40'/2sets

Pictures Review:
Certificate:ISO and CE
Our Service: 1.We can design the customerized towable boom lift as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Operation video can be sent to you if needed.
5.Maintenance video will be given once the towable boom lift break down to help you repair.
6.Parts of towable boom lift can be sent to you by express within 7 days if needed.
