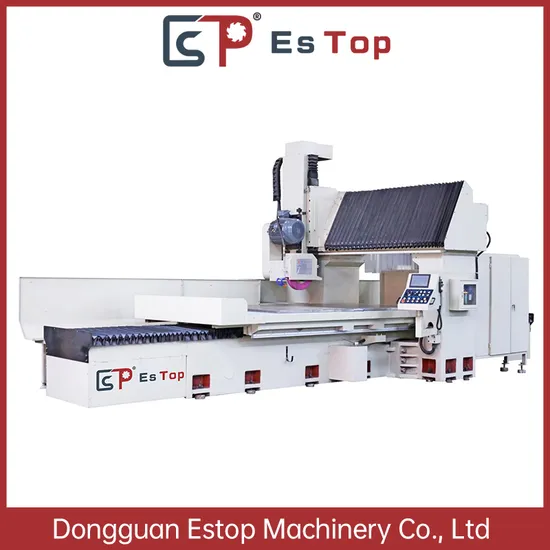

Estop High-End Excellent Die Double Column Gantry Grinder Etld-1620nc Okamoto Same Style

Product Description

ESTOPCNC is a manufacturer, distributor and exporter of industrial master machinery and CNC machine tools in China. The company is headquartered in Dongguan city, Guangdong Province. Company by a group of in Taiwan and mainland China engaged in more than 20 years of CNC milling machine manufacturing engineers, maintenance technicians, relying on the powerful world factory location advantage and talent advantage, constantly promote the shift to China smart upgrade, made in China to intelligent manufacturing in China. Cost-effective milling machine, grinding machine, gantry processing center and other CNC machinery and equipment to the international market. ESTOPCNC in the form of diversified, intelligent response to changing market environment, from the introduction of advanced technology, digestion and absorption innovation, to fully replace imported Japan, Taiwan machine tools, in domestic application, and after ten years of precipitation and accumulation, reverse exports to Japan, Taiwan province, North America, Europe and southeast Asia and the Middle East countries, combined with professional management operation system and professional international after-sales service team, won the user's praise and affirmation.
We will continue to bring you high quality and a variety of machining center equipment. Single-minded, do a good job of machinery, good service hexahedral processing, that is, the perfect quality and excellent global after-sales service! Product Description
Dongguan ESTOP Machinery Co., Ltd.
Model: ETLD-1625NC AHD: Left and right hydraulic drive, Infront and back stepper motor, up and down servo motor.
NC: Left and right hydraulic drive, Infront and back servo motor, up and down servo motor. CNC: X,Y,Z,Three axis servo motor CNC control. Features and applications: Features:
1. High rigid triangular beam design:
The beam adopts triangular structure design, with excellent high rigidity, bending and torsional resistance;
The grinding wheel reduces the beating during grinding and is not easy to passivate.
2. Rail adhesive Teflon [ Machine base guide rail, beam rail are high-frequency quenching]:
All guide rails of the machine tool are finely ground and then manually scraping, and the guide rails are affixed;
The beam adopts triangular structure design, with excellent high rigidity, bending and torsional resistance;
The grinding wheel reduces the beating during grinding and is not easy to passivate;
Rail adhesive Teflon [ Machine base guide rail, beam rail are high-frequency quenching] with Teflon to reduce crawling force.
3. Spindle and spindle motor design:
The spindle adopts ultra-precision angular contact ball bearing structure design, so that the spindle has Spindle and spindle motor design ultra-high grinding rigidity and grinding precision. Product Parameters
Specification:

Main item	Double Column Type Surface Grinding machine	Unit	ETLD-1620NC
Worktable	Electromagnet table size(x*y)	mm	2500x1500
	Left and right Xaxis travel	mm	2700
	Max center of wheel to table	mm	630
	Two column passed maximum workpiece size	mm	1930
	Worktable Maximum loading copacity	kg	6000
	Worktable feed speed	m/min	5-30
	Table t-slot specification	mm*n	18x6
Grinding wheel	Grinding wheel size max	mm	500x 203x50-75
	Spindle motor	HP*P	25x4
	(50HZ/60HZ) Grinding wheel speed	R.P.M	1450
Size	Height of machine(Move to top Height)	mm	≈3500
	Layout Floor space(Length X width)	mm	6750x3700

Our Main Products: High precision machining centers, Surface Grinding machine, Gantry grinding machine, NC band saw machine, CNC Circular plate sawing, CNC Vertical milling machine, CNC Duplex milling machine, Deep hole drilling machine, Horizontal milling centers, Vertical machining centers, High speed CNC turning centers, High Precision 5-Axis Vertical Machining CenterIf you are interested in our machines, you can click the picture below to enter the homepage to view. We can customize models according to customer requirements, more Non-standard series please consult the manufacturer. Our Advantages

Certifications
Packaging & Shipping
FAQ
FAQ
Q1. What is the payment Terms ?
A1: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you.
Q2.How can I choose the most suitable machines ?
A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q3. What is the package of the machines?
A3: The machines standard packed by iron pallets or Fumigated wood with plywood films.
Q4. What is your trade terms?
A4: FOB, CFR, CIF or others terms are all acceptable.
Q5. What is your minimum order quantity and warranty?
A5: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine.
Q6.When is the delivery time?
A6: We will delivery then within 15-60 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly.
Q7: How to ensure the quality?
A7: 1.Firstly we choose best material for the processing.
2.Being and after processing, we will inspect the finished parts.
3.Machine finished, our company QC will test the machine as per customer requests.
Q8: How to deal with the after-sales service?
A8: 1. Technician available for training and installation at customer's company 2. Internet service by sending emails and videos, communicating online or calling
3. One year warranty. During the warranty period, we will sent damage of the machine parts (non-human factors)for free.
Q9: How do we get the training for the machines?
A9: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to your place.
Q10: Where is your factory located?
A10: Our factory is located in Dongguan city and Chongqing city.

---
