Product Description
Product Description

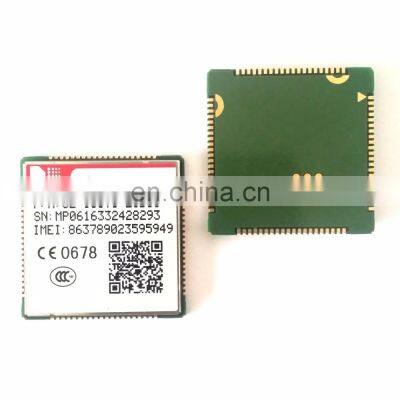

DescriptionSIM5360 WCDMA/HSPA/HSPA+ Module SIM5360A, SIM5360J, SIM5360E• The SIM5360 series is Dual-Band HSPA+/WCDMA and Quad-Band GSM/GPRS/EDGE module solution in a SMT type which supports HSPA+ up to 14.4Mbps for downlink data transfer. • It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, etc. With abundant application capability like TCP/ UDP/ FTP/ FTPS/ HTTP/ HTTPS/ SMTP/ POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.General features• SIM5360A:- Dual-Band UMTS/HSPA+ 850/1900MHz- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz• SIM5360(J)E:- Dual-Band UMTS/HSPA+ 900/2100MHz- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz• SIM5360J(D):- Dual-Band UMTS/HSPA+ 800(850)/2100MHz- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz• GPRS multi-slot class 12• EDGE multi-slot class 12• Output power- UMTS 850/1900: 0.25W- UMTS 900/2100: 0.25W- GSM850/GSM900: 2W- DCS1800/PCS1900: 1W• Control Via AT Commands• Supply voltage range: 3.4V~ 4.2V• Operation temperature: -40℃ to +85℃• Dimension: 30 X 30X 2.9 mm• Weight: 5.7gSpecifications for GPS• CELL assistant Location (No GPS)• A-GPS: MS-Based, MS-Assisted• Stand-alone GPS• QUALCOMM XTRA GPS mode• GLonassSpecifications for Data transfer• HSPA+- Max. 14.4Mbps(DL), Max. 5.76Mbps(UL)• WCDMA- Max. 384Kbps(DL), Max. 384Kbps(UL)• EDGE Class:- Max. 236.8Kbps(DL), Max. 236.8Kbps(UL)• GPRS- Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)Specifications for SMS• Point to point MO and MT• Text and PDU modeOther features• USB Driver for Microsoft Windows 2000/ XP/ Vista/7/8• USB Driver for Windows CE/Mobile• USB Driver for Linux/Android• Firmware update via USB• Embedded AT• LUA Script Language• MMS• TCP/IP• FTP/ FTPS/ HTTP/ HTTPS/ SMTP/ POP3/ DNS• FOTAInterfaces• USB2.0• UART• SIM card• SPI• I2C• Keypad(5*5)• Constant current sink• GPIO• RTC• ADC• SDIO• PCM *Certifications• SIM5360A- FCC- ROHS- REACH• SIM5360JE/JD- Telec- JATE- ROHS- REACH• SIM5360E- CE- GCF- ROHS- REACH- CCCWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
