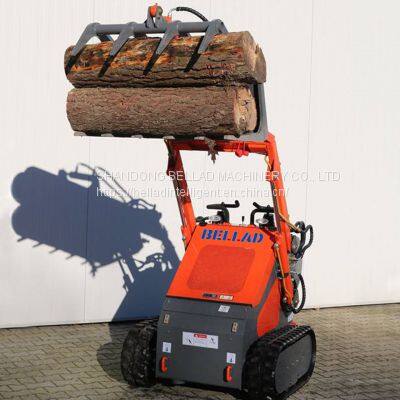

BELLAD skid steer loader 200kg mini skid steer loader BL380
Product Description
Feature for BELLAD BL380 Mini Skid Steer Loader :
Operating weight: 840-1068kg
oprating load: 200kg
BL380 is a versatile mini skid steer loader. 360° skid steer type, Small Compact body, easy to handle, they can link with different attachments for a variety of job need, such as mini digger. Widely used in gardens, manufacturing, recycling, roads, buildings, construction, farms, cave, chemical plant and so on.
Performance Paramete
Item
| skid steer loader mini loader skid steer stump grinder
|
Wheel Type
| Track Type
|
Max working height(A)
| 2143 mm
| 2128 mm
|
Max pin height (B)
| 1884 mm
| 1869 mm
|
Max dump height(C)
| 1488 mm
| 1473 mm
|
The highest point discharge distance(D)
| 348 mm
| 399 mm
|
Total height (H)
| 1233 mm
| 1218 mm
|
The height from the ground(F)
| 118 mm
| 105mm
|
Wheelbase (G)
| 636 mm
| 612mm
|
No bucket length(J)
| 1752 mm
| 1752 mm
|
Total width (W)
| 1160 mm
| 1060 mm
|
Bucket width (K)
| 980 mm
| 980 mm
|
Total length(L)(with bucket)
| 2206 mm
| 2206 mm
|
Turning radius (R)
| 1307 mm
| 1317 mm
|
Bucket swing angle(β)
| 55°
| 55°
|
Bucket unloading angle(γ)
| 30°
| 30°
|
Opening-closing angle(θ)
| 25°
| 25°
|
Angle of departure(α)
| 11°
| 10°
|
Engine
| Rated Power (KW)
| 17.15KW
|
Rotating Speed
| 3600rpm
|
Noise(Dd)
| ≤95
|
Hydraulic System
| Pressure
| 17Mpa
|
Working Time(s)
|
Raise
| 4.27
|
Dump
| 1.34
|
Lower
| 3.31
|
Performance parameters
| Operating Load
| 200kg
|
Bucket Capacity
| 0.15m³
|
Max Lifting Force
| 375kg
|
Travel Speed
| 0-5.5km/h
|
Operating Weight
| 890kg
|
| Normal
| Optional Item
|
Engine
| American Briggs&Stratton gasoline engine 23HP.
| Kohler gasoline engine 23.5hp
|
Pump
| Chinese gear pump, double pump.
| Chinese Triple pump; Italian servo pump(joystick)
|
Valve
| Italian double valve.
| Italian triple valve. Optional
|
Operating Handle:
| double hydraulic mechanical handles.
| one servo handle & one mechanical handle
|
Moving way:
| wheel type with engineering tires.
| wheel type with solid tires; rubber track type
|
Attachment:
| Original with a standard bucket.
| various attachments.
|
SHANDONG BELLAD MACHINERY CO., LTD
Contact：Richie Shi
Mobile：+86 13356718553(whatsApp/wechat)
Email: richie_shi@outlook.com
>>
