Qm B Series Dhg Floating Socket Push Pull RJ45 M12 Connector Banana Plug Terminal Connector

Product Description

Product Description

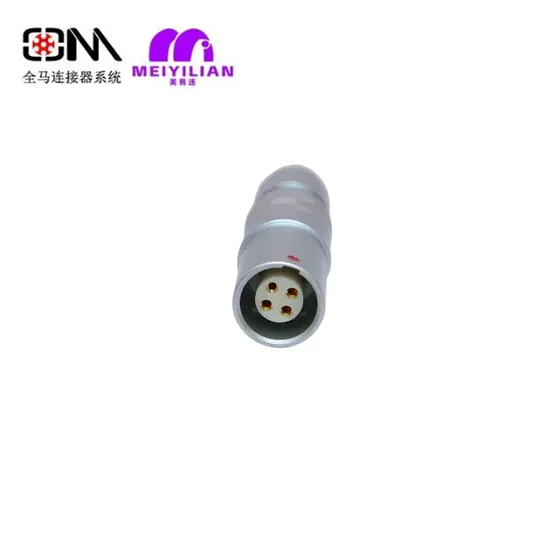

DHG floating socket: B series plug-in self-latching connector, with the characteristics of quick separation, simple and convenient, firm and reliable
Product Features
With sheath tail cap
With cable clamp
Various positioning pins to prevent mis-insertion
Related Applications
Infantry Vehicle
Dispensing Machine
Autonomous driving control system
Detailed Photos
Features
Main features of B series metal connectors
Fast push-pull self-latching system
Welding, crimping, and PCB(Printed Circuit Board) pin core
Straight type, 90° angle type
Various locating pins options can avoid mixed insertion between similar connectors
All-round shielding effect could anti-electromagnetic interference
2-40 multi-cores can be selected, high-density installation can save space
Locating pin system, G is a standard locating pin, used for connector alignment
Specification

Specification
Number of inserts	>5000
Humidity	At 60ºC, the highest humidity can reach 95%
Temperature rang	-55ºC ~ +150ºC
Vibration	10-20000Hz, 15g
Mechanical shock	100g.6ms
Salt spray corrosion test	>96h
Protection level	IP50
Connecting mode	Push pull self-locking

How to choose model
Product Parameters
Technical parameters of DHG floating socket
Category: B series
Model: DHG
Series: 0B, 1B, 2B, 3B, 4B

Reference		Dimensions(mm)
Series	Model	A	L		S1	S2
00B	DHG	6.8	34		5.5	6.0
0B	DHG	9.5	35.5		8.0	7.0
1B	DHG	12.0	42.0		10.0	9.0
2B	DHG	15.0	47.0		13.0	12.0
3B	DHG	19.0	56.0		15.0	14.0

Company Profile
QM connector is a Chinese manufacturer of waterproof push-pull connectors. We aim to provide high-quality connectors for our customers. The push-pull connector is a small and convenient spare part for your equipment. It can be used in medical devices such as endoscopies, can be used in national defense garments, base stations for telecommunication, and automatic machines such as dispensing machines, etc. Our waterproof self-locking connectors have different series that will fit your requirement in different equipment. We also provide customize service if reach the MOQ. QM always keeps in faith that we should do our best to help our customers. Your satisfaction is our motivation!
a) Good after-sale service, all questions will be replied to within 12 hours.
b) Customized design is available. ODM&OEM are welcome.
c) We can provide a free sample, but the buyer should handle the posting fee.
d) Convenient transportation and fast delivery, all available shipping ways could be applied, by express, air or sea.
e) High quality and the most competitive price.
f) Advanced produce and inspecting equipment.
How to produce?
We provide Lemos-compatible connectors. waterproof push-pull circular M12 metal waterproof connector. Our factory is located in Shenzhen, China. If interested. feel free to contact us for samples, specifications, and quotations. Looking forward to receiving your message and solving your connection problem. PUSH PULL WATERPROOF CONNECTOR LEMOS-LIKE B SERIES CONNECTOR CUSTOMIZED CABLE ASSEMBLY 20 YEARS EXPERIENCE IN CONNECTOR CE/ ISO9001(2008)/GJB9001C-2017/ROHS/SGS CERTIFICATE MEDICAL/INDUSTRIAL/OPTICAL/MEASURE/NAVIGATE/DRONE PROVIDE SAMPLE AND TECHNOLOGY SUPPORT
FAQ
Q1. Are you a manufacturer or trading company?
QUANMA: We are a professional manufacturer of push-pull connectors our sales service
department is in Shanghai and our factory is in Shenzhen Q2. What's the lead time after placing an order?
QUANMA: Normally we will deliver your order 7-12 working days after placing the order. Q3. Is your connector compatible with another brand connector? QUANMA: B series is compatible with the LEMOS connector.
Q4. How many fields can be used for this kind of connector? QUANMA: QUANMA connector is now widely used in the fields of measurement, medical,
audio-video, national defense use, navigation, security, aviation, industrial control, automotive and power, etc.
Q5: How are our orders packed and delivered? QUANMA:
Our connector will pack and ship to you safely. We will pack it as you required. Check our package and warehouse below!

---
