China High Output and Long Spraying Distance Shot Concrete Machine

Product Description

High Output and Long Spraying Distance Shot Concrete Machine

Product Description

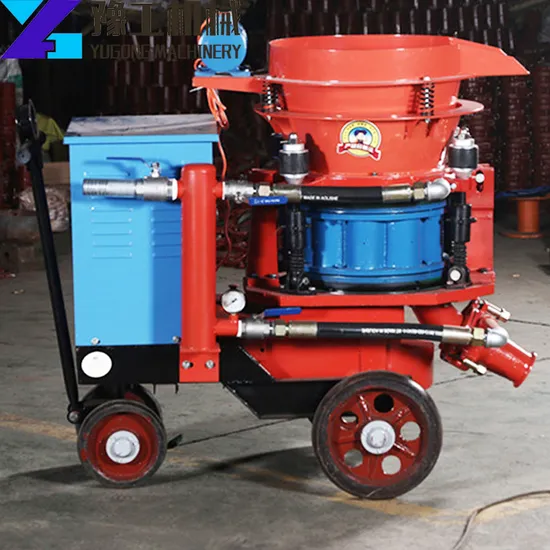

Shotcrete machine is a kind of spraying machine like mortar spraying machine which works by using compressed air to continuously transport concrete along the shotcrete machine hose and spray it to the construction surface by a shotcrete nozzle. You can find wet shotcrete machine and dry mix shotcrete here in YUGONG. Shotcrete machine is well received by market because its high efficiency, low cost, easy operation, and wide application. You can use the concrete shotcrete machine in tunnel, mining, retaining wall, underground project, and some other preventive construction projects.
Dry Shotcrete Machine Specification

Model	YGM-DS5P	YGM-DS7P
Capacity (cubic m/h)	5	7
Tube Diameter (mm)	51	57
Discharge Head (Horizontal)	200m	200m
Max Aggregate (mm)	20	20
Compressed Air Consumption	10-15m3/min	10-15m3/min
Air Pressure (mpa)	0.4-0.6	0.6-0.8
Motor Power(kw)	5.5	7.5
Rotor Diameter (mm)	438	480
Weight (kg)	850	950

Wet Shotcrete Machine Technical Parameter

Model	GM-WS5P	YGM-WS7P
Capacity (cubic m/h)	5	7
Tube Diameter (mm)	51	57
Discharge Head (Horizontal)	50m(Horizontal) 20m (Vertical)	50m(Horizontal) 20m (Vertical)
Max Aggregate (mm)	15	15
Compressed Air Consumption	7-10m3/min	7-10m3/min
Air Pressure (mpa)	0.2-0.6	0.2-0.6
Motor Power(kw)	5.5	7.5
Rotor Diameter (mm)	1000	1250
Weight (kg)	720	830
Dimension (mm)	1350*750*1150	1400*750*1300

Five Major Advantages of Shotcrete Machine
1. The wet shotcrete machine greatly reduces the density of dust around the machine and the shotcrete nozzle, which can do less harm to workers' health.
2. Much higher efficiency than manual work.
3. Low rebound rate. When using dry mix shotcrete, the rebound rate ups to 15%-50%, but the wet shotcrete machine can reduce the rebound rate to under 10%.
4. There is more water when using wet mix shotcrete, which can improve the quality of the spraying concrete.
