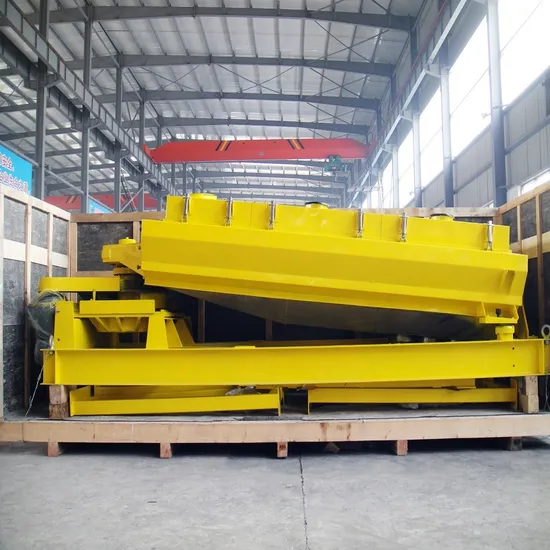

Rectangular Gyratory Rotary Rotex Screener

Product Description

About Us Headquartered in Xinxiang City, Henan Province, China, domestic well-known screening and conveying equipment city, PK Machinery has enjoyed more than 50 steady years of successful growth, and now it has been widely acknowledged as a trustworthy and professional manufacturer in the field of bulk material handling equipment, including vibrating screen, vibrating feeder, belt conveyor, bucket elevator, screw conveyor, scraper chain conveyor and associated spare parts in complete specifications.

Product Description Manufacturer: Henan Pingyuan Mining Machinery Co., Ltd
History of PK rotary screener (gyratory screener)
As the first one manufacturer of this type screen in China, PK Machinery Co., Ltd start to design and produce this type screen from the first half of the 1998, and PK Machinery Co., Ltd has supplied hundreds sets of rotary screener (gyratory screen) in China market in the last 15 years. PK Machinery also export this type screen to oversea successfully.
PK Machinery Co., Ltd accumulate plenty experience on this type screen in the last 15 years, we improve and develope this screen continuously during equipment operation and according the advice of the customer of PK rotary screener (gyratory screen).
Following is the brief introduction of this type screen, if you interested in PK gyratory screen, please feel free to leave me your message and we will you reply you back soon.
Brief introduction
We call this type screen gyratory screen because it do a circle movement on a almost horizontal plane. We mainly use it for screening urea granulation and other fertilizer, but it also could handle other bulk and fine material such as grain, sand and salt.
We had supplied hundreds sets of type screen own plenty experience on this equipment.
1. Features of vibrating screen
Gyratory Vibrating Screen is a new kind of screen machine especially for urea, ferlizer, grain, cereal such as granular material. There are following advantages: Reasonable design, stable running, full-sealed construction, no dust pollution, plugged hole proof, sticking proof etc. It is more obvious to carbamide screening with strong hygroscopicity, big viscosity, easy plugged hole and sticking. Reduce validly base dynamic load for adopting rotary principle.
2. Application of vibrating screen
Gyratory Vibrating Screen is a new screening device which is developed mainly aiming at screening of bulky urea and fertilizer, also used widely for agriculture to screen grain and cereal.
3. Advantages of vibrating screen
1) No vertical vibrating and long span life sieve mesh(from 6 to 12 months)
2) Sieve mesh anti clogging clearing device is set up on each layer of mesh. The unplugged hole of mesh prolongs running period. Sieve classifier constantly clears the sieve mesh under working condition.
3) Adopting rotary principle improves obviously materials distribution, increase effective utilization of screen deck, finally increase the screen efficiency and reduce powder content of finished materials.
4) Full-sealed construction and no dust pollution improve working circumstance of operation sales person.
5) Reduce dynamic load 3 to 5 times to base.
If you interested in this type screen, please feel free to contact us, we will answer all your question on this equipment. Product Parameters
Technical Parameters

Model	Screen Surface		Layer No.	Feeding Size	Amplitude (mm)	Frequency (r/min)	Power (kW)
	width	length
PXZS1224	1200mm	2400mm	1-4	<50mm	75-90	1450	5.5
PXZS1230	1200mm	3000mm	1-4	<50mm	75-90	1450	5.5
PXZS1236	1200mm	3600mm	1-4	<50mm	75-90	1450	5.5
PXZS1524	1500mm	2400mm	1-4	<50mm	75-90	1450	5.5
PXZS1530	1500mm	3000mm	1-4	<50mm	75-90	1450	5.5
PXZS1536	1500mm	3600mm	1-4	<50mm	75-90	1450	5.5
PXZS1830	1800mm	3000mm	1-4	<75mm	75-90	750	7.5
PXZS1836	1800mm	3600mm	1-4	<75mm	75-90	750	7.5
PXZS1840	1800mm	4000mm	1-4	<75mm	75-90	750	7.5
PXZS2036	2000mm	3600mm	1-4	<75mm	75-90	750	7.5
PXZS2040	2000mm	4000mm	1-4	<75mm	75-90	750	11
PXZS2050	2000mm	5000mm	1-4	<75mm	75-90	750	11

Note: the parameter above is just for reference,it can be customized by different requirment.
Selection Conditions

♦Material to be processed: _____	♦Max. granule size of the feeding material: _____mm
♦Handling capacity (Ps. It means the total	♦Layer number: ______
material capacity feeding from the inlet): _____t/h	♦Mesh size of each layer: _____mm
♦Bulk Density: _____t/m3	♦Particle distribution percentage:____________
♦Material temperature: _____ºC;	(please check the following example to help you
♦water content:____%	understand it.Supposing the layer number is 2
♦Material is corrosive or not: ____ (Ps. Yes or No)	and the aperture size of each layer is 10mm and 5mm,
♦Material is sticky or not: ____ (Ps. Yes or No)	then you will get 3 kinds of products: X,Y and Z.
♦Working environment is indoor or outdoor: _____	X≥10mm; 5mm≤ Y < 10mm; Z<5mm.
♦Working environment temperature: ______ ºC	We want to confirm the following information:
♦Upstream equipment (Ps. It means what kind of	1)The percentage of X in the whole material:_____%;
equipment is used to feed the material): _____	2)The percentage of Y in the whole material:_____%;
♦Downstream equipment (Ps. It means what kind of	3)The percentage of Z in the whole material:_____%;)
equipment is used to discharge the material): _____	♦Working power supply: _____V ______HZ
