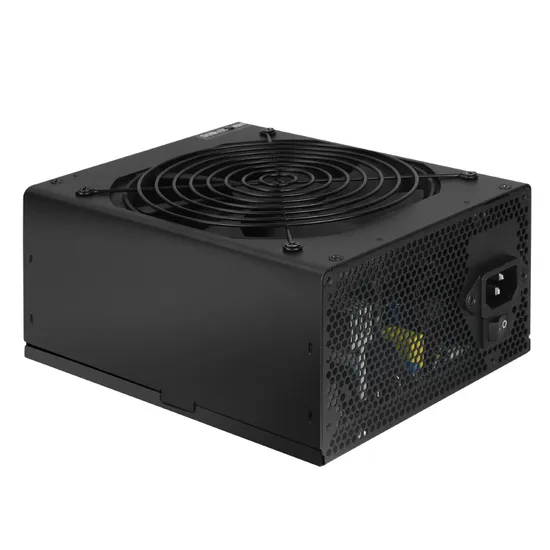

Bitcoin Miner Power Supply 1650W PC PSU 80+ Gold Efficiency

Product Description

GameMax 12v atx power supply 1650w power supply psu for bitcoin mining,miner power supply for ethereum ETH miner mining 8 GPUs, 8-channel independent + 12V output, power factor up to 1650W 80PLUS Gold high conversion efficiency, the typical load efficiency up to 90%Large 140 mm fan structure, intelligent temperature control, large air volume, ultra mute function mature APFC + Double Forward technology, The most green and environmentally friendly power source: high power, high efficiency, full RoHS craft, radiation.The applicability of the strongest power: full power input, support multiple high-power quad-core CPU, support for 6 graphics card, high-performance motherboards graphics cards and other devices. 1.Efficiency exceed 87%@220V(Gold 90% designed basis) 2.AC input full range design(100 to 240V.Optional) 3.Thermal control technology 4.Protection circuitry offer: OVP OPP SCP OCP UVP OTP 5.100% burn-in under ambient temperature upto 45ºC 6.100% high voltage test under AC 1.5KV 10mA 3Sec 7.Standby power less than 1W,low power consumption 8.Low ripple,silent 9.MTBF:100K hours at 25ºC

Model NO.					GM-1650
Rate Power					1650W
Peak Power					1350W
Efficiency					Over 87%
AC Input Range					180V-240V
Active PFC Universal					Yes
Temperature Control					Yes
12V Rail					+ 12V
Housing Material					black coating
Fan &Fan Guard					140mm black fan +silver fan guard
I/O Switch					Yes
Modular					/
Power Cord					Yes
Housing Size					165*150*86mm
Package					PE bag & 10pcs/brown box
M/B(20+4P)					1(exposed500mm)
CPU(4P)					/
CPU(4P+4P)					1(exposed 500mm)
PCI-E(6)					/
PCI-E(6+2)P					6(exposed 500mm) (each cable 2xPCIE(6+2))
SATA					7(exposed 500mm)
Molex 4Pin					5(exposed 500mm)
Floppy 4Pin					/
Input AC		180-240Vac 18-9A 50-60Hz				Fuse rating 20A 250Vac
Output Voltage		+ 12v			+5v	+3.3V		-12V		+5Vsb
Output Current		128A			20A	20A		0.5A		3A
Max.Output		1536W			100W			21W
Rated Power		1650W

---
