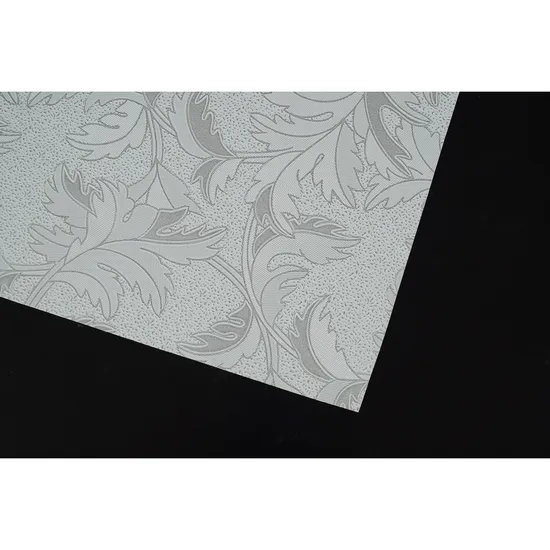

PVC Laminated Gypsum Ceiling Tiles

Product Description

) Material: PVC laminated gypsum ceiling tile with aluminum foil backing 2) Thickness: 7mm, 7.5mm, 8.0mm, 8.5mm, 9.0mm, 9.5mm, 10mm, 12.0mm, 3) Sizes: 595mmX595mm 600mmX600mm(2'X2') 603mmX603mm 595mmX1195mm 600mmX1200mm(2'X4') 603mmX1210mm 4) Size tolerance: Length <+/-1.0mm, width < +/-1.0mm, thickness <+/-0.5mm 5) Weight: 7.5mm=5kg/sqm, 8.0mm=5.3kg/sqm, 8.5mm=5.8kg/sqm, 9mm=6.2kg/sqm, 9.5mm=6.5kg/sqm 6) Strength: >100N 7) Characters: Non-flammable B1, in accordance with Chinese standard GB8624-1997 8) Installation: Match with ceiling T-bar Packing: Export carton(6PCS, 8PCS or 10 PCS per carton with film)

Specification	Length x Width	595x595,595x1195,600x600,603x603, 605x605,603x1212,610x1220(2'x4')(mm)
	Thickness	7.0,7.5,8.0,8.5,9.0,9.5,12,12.5(mm)
Specification Tolerance	Length:±1.0MM, Width:±1.0MM, Thickness:±0.5MM
Packing	6/8/10 pieces per carton with shrink wrap bag and importer trade mark printed on the carton strip.
Technical Data	1..Weight/sqm:7.0MM:5.5KGS,7.5MM:5.7KGS,8.0MM:5.9KGS. 8.5MM:6.2KGS,9.0MM:6.8KGS,9.5MM:7.1KGS,12MM:9.2KGS, 12.5MM: 9.5KGS.
	2.Fire resistant property: No-flammable B1 in accordance with Chinese standard GB8624-1997
	3. Length ways & Lateral Ruptures Load:7.0MM>110N , 8.0MM>120N, 9.0MM>140N.
Installation	Math with Top quality T-32/38 grids with 0.30-0.45MM thickness.
Properties: The top quality pvc laminated gypsum ceiling tile with best aluminum foil backing is of thermal insulation, fire resistant, moisture resistant, no deviation, elegant, economic, environmental and easy installation as the suspend ceiling tile and dry wall partition. Environmental effective resisting dusts conform to the standard of GB6566-2001<>. Moisture resistant, slight deviation ,easy to clean, moisture rate ≤2%,conform to the national standard C/T997-2006 Decorative gypsum board with paper-facing C. Fire resistant A grade, conform to the Item 204 of BG50222-95 of Building material inter decoration design fireproof criterion D. Noise reduction Coefficient :0.1-0.3 E. Thermal conductivity:0.16W/MK. F. Light reflectance:0.75.

---
