Hot Sale Farm Implement 1bzd Series Tractor Mounted Hydraulic Opposed Hydraulic Disc Harrow

US$2,770.00-5,430.00 1 set (MOQ)

Basic Info.

Model NO.
1BZD-2.8/3.3/3.8
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Red, Blue,Green, Other Colors
Warranty
1 Year
Power
Tractor
Match Power
80-180HP Tractor
Sample
Available
Trade Term
Fob, CIF, Crf, etc
Transport Package
Iron Crate
Specification
Heavy duty disc harrow
Trademark
CYC
Origin
China
HS Code
8432210000
Production Capacity
5000 Sets / Month

Product Description

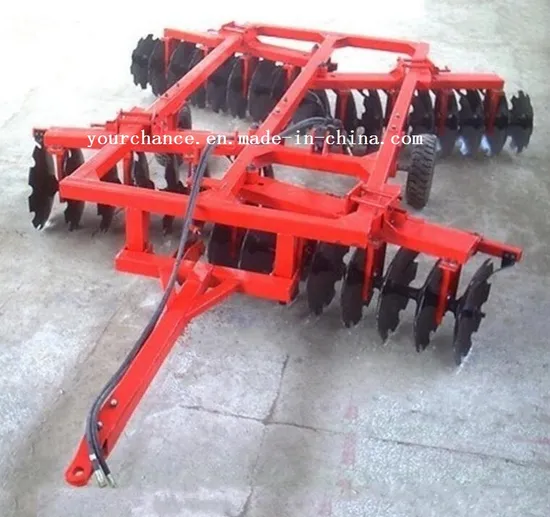

Hot sale Farm implement 1BZD series Tractor mounted Hydraulic Opposed Hydraulic Disc harrow
Main Features and Usage:
1BZD Series Hydraulic Opposed Heavy-duty Disc Harrow is adopted frame type symmetrical structure, can eliminate the deflected tractive force produced by the implement on the tractor during the working process.
This harrow is suitable for cleaning stubble before tillage and breaking the soil after tillage in the waste land, marsh and brush land and heavy soil.
Main Specification and Technical Parameters :
Model 1BZD-2.8 1BZD-3.3 1BZD-3.8
Overall dimension (mm) 5120*2700*1500 5260*3200*1500 5330*3680*1500
Working width (mm) 2800 3300 3800
Working depth (mm) 180~220
No.of blades (pcs) 24 28 32
Weight (kg) 2050 2600 3100
Matched power(hp) 80~100 100~120 120~160

1BZD Series Disc harrow main Features and Specification :
Disc harrow by Iron crate packing:
High quality Disc harrow have ISO,CE, PVOC COC, CO etc certificates:
Best price will be quoted for you as soon as receive your Requirement !
