1000kg/H CE Ring Die Biomass Wood Sawdust Pellet Making Machine Pellet Machine

Product Description

1000kg/H LEABON CE Biomass Wood Sawdust Pellet Making Machine for Sale
Product Description
1) Specification of Flat die electric motor type wood pellet mill:

Flat Die Wood Pellet Machine
Model	Capacity (kg/h)	Motor(kw)	Pellet size(mm)	Dimension(m)	Weight(kg)
KAF-200	80-120	7.5	6,8	1*0.45*0.8	320
KAF-250	150-200	15	6,8	1.1*0.55*0.95	400
KAF-300	250-300	22	6,8,10	1.2*0.6*1.1	550
KAF-400	350-450	30	6,8,10	1.45*0.8*1.3	850
KAF-450	450-600	45	6,8,10,12	1.5*0.85*1.55	1300
KAF-550	700-800	55	6,8,10,12	1.55*0.9*1.65	1600

2) Specification of Flat die PTO type wood pellet mill:
Usage of the PTO pellet mill/press:
Produce pellet feed for pig, cattle, sheep, rabbit, chicken, duck, fish, etc To make straw granule To make inorganic fertilizer granule

Model	Output (kg/h)	Pellet Size (mm)	Flat die diameter (mm)	Overall Dimension (mm)	Weight (kg)
PM- 200T	100-150	6,8	200	450*400*1100	250
PM- 250T	200-250	6,8	250	550*450*1100	300
PM- 300T	250-300	6,8,10	300	600*550*1250	350
PM- 350T	350-400	6,8,10	350	650*600*1300	400

3) Specification of diesel drive wood pellet machine :
Main features:
Simple structure, wide applicability, small floor space, low noise Powder feed, do not add water or little water granulation can be carried out. The moisture content of pellets smaller, more conducive to storage. Grain hardness, surface finish, internal curing fully, can improve digestion and absorption of nutrients. So pathogenic microorganisms and parasites can be killed, be suitable for feeding rabbit, fish, duck and experimental animals. The models has1.5~20 various diameter dies, be suitable for granulation of different materials and get the best results. Be suitable for various materials, suppression effect can be guaranteed.

Model	Output(kg)	power(hp)	pellet(mm)	Over-size(mm)	weight(kg)
KAF-200D	100-120	15	6,8	1250*650*1200	450
KAF-250D	150-200	22	6,8	1300*700*1300	650
KAF-300D	250-350	32	6,8,10	1650*750*1300	800
KAF-350D	300-500	42	6,8,10	1350*1100*1100	950

4) Small 200-800 kg/h wood pellet plant:
5) 1000-3000 ton/h wood pellet plant:

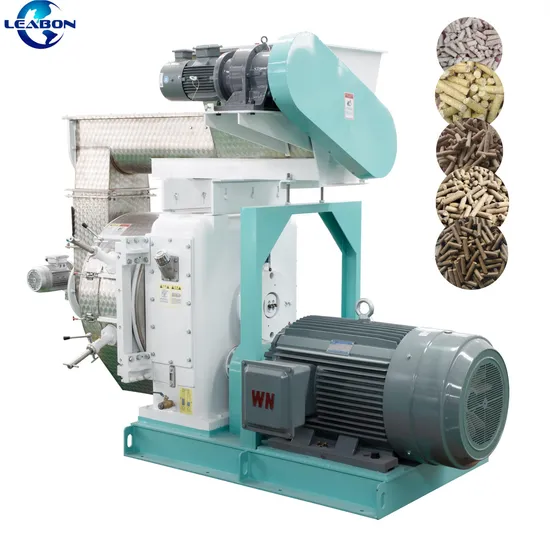

Horizontal Ring Die Wood Pellet Machine
Model	Inner Dia of ring die(mm)	Power (kw)	Capacity(T/h)	Feed Power(kw)	Conditioner Power(kw)
LH-320	320	37	0.2-0.3	1.5	2.2
LH-350	350	55	0.5-0.7	1.5	3
LH-420	420	90	0.8-1.2	2.2	5.5
LH-480	480	90	1.3-1.8	2.2	5.5
LH-508	508	132	1.7-2.2	2.2	5.5
LH-558	558	160	2-2.5	2.2	5.5
LH-678	678	185	2.5-3.5	3	11
LH-768	768	250	4-5.5	4	18.5

Wide range of Raw material and final products:
Agricultural waste, and forest or wood residues from furnitures, such as sawdust, waste pallets, rice husks, corn cobs, maize stalks, peanut shells, wood logs, and etc.
Suitable condition for making pellets :
Screen Size: 5mm holes; Moisture: 10-15%
