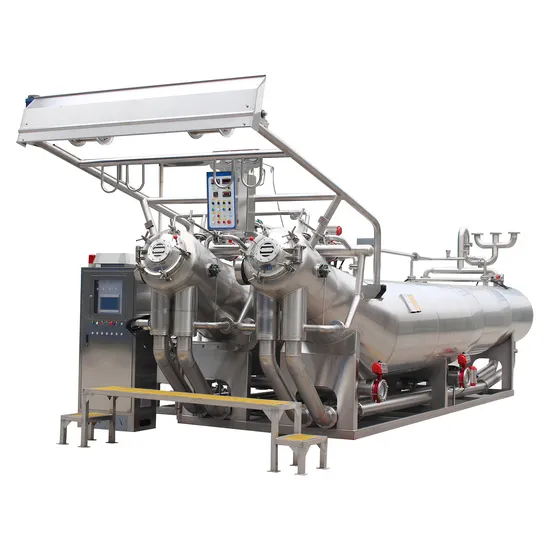

High Speed High Temperature and Pressure Gradient Dyeing Machine 1500 Kg Jet Dyeing Machine

Product Description

Optimum Dyeing
Dyeing, untwisting, preshrinking, reducing and other low bath ratio of various fabrics. Suitable for N100%, T100%, N+op,
T+op, NT new combination etc.
PECULIARITY:
Design: Low tension effect, no guide cloth wheel design, the billet running and nozzle spray Angle is optimal.Nodamage to the fabric surface, reduce excess fabric tension, reduce creases and other advantages. High flow nozzle toimprove leveling effect.Special slot structure, mesh design and fluid design rationalization, high-speed operation toincrease the number of cycles, improve the leveling effect.
Production: The whole process of homemade quality can be guaranteed; Special pickling electrolysis process does nothook wire; Own pressure vessel production qualification,safety and worry.

Model		AN-1	AN-2	Why choose us? Environmental Protection And Energy Saving: With the mutual coordination of storage, water quantity and dyeing parameters , the bath ratio can be reduced to a high efficiency state of 1:4-6,which can save water and electricity, reduce the use of dyeing auxiliaries and achieve the effect of environmental protection and energy conservation. New Design: Stepped bucket design.Effective use of traditional walking dyeing machine has space to reduce water consumption and increase distribution.
Max.Temperature:		140ºC
Max. Pressure:		4KG/CM²
Ratio:		1:4~6
Design Capacity:		300KG	600KG
Main Pump Power:		22KW	37KW
Fabric Speed:		150-600M/min
Dimension(MM)	Length(L1)	10376
	Length(L2)	11748
	Width(W)	1900	2977
	Height(H1)	2912

Company Profile

ZYTT is an experienced trading and manufacturer from last 25years,it's located in Wuxi,JiangSu Province,China, 40min from Shanghai railway station.
ZYTT start from trading for all kinds of textile plant machine, such as blanket line, bed sheet line, we realized that the dyeing machine is more important for dyeing plant, and we created our own brand for dyeing machine at top quality,

ZYTT becomes an expert in the field of textile dyeing machines/pre-treatment and finishing machine. We make customermized design according our customer's requirement,our aim is to bring biggest value to customer.

ZYTT dyeing machine has been well received by domestic and foreign customers.On the basis of 20 years professional manufacturing experience,our brand is wellknown in international market in the world.

We want to show high quality textile machine to all countries.
We want to spray china cultures to all countries.
We want to break customer mind "China texitle machine is low quality".
We want to be top brand in textile machine from China.
Lets Grow up with customer together.

---
