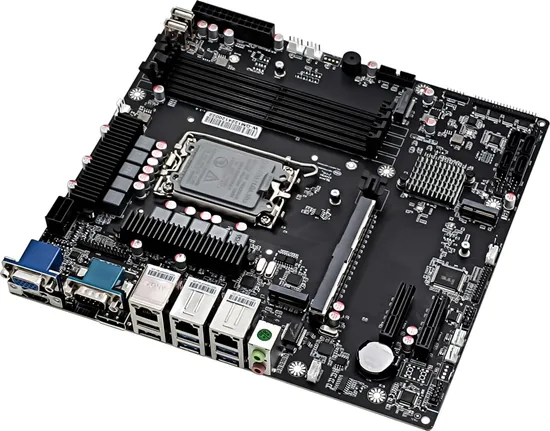

Micro-ATX Motherboard Intel I3 I5 I7 13 14 Gen Mainboard B760 3 LAN Pciex16, Pciex4 Board

Product Description

Intel® 12 13 14th B760 3 LAN 4 SATA Micro-ATX Industrial Motherboard FM-1700-L3S4P VER1.0 Product Description 14/13/12 Generation Core™, Pentium® Gold Celeron® Processors, B760
4*DDR5 DIMM, 4400MT/s, Max 128GB
1*VGA+1*DP+1*HDMI+1*EDP, multiple display modes
3*USB3.2 Gen2+3*USB3.2 Gen1+8*USB2.0
2*M.2_NVME, 1*M.2_WIFI, 4*SATA, 3*intel i226 2.5G NICs
1*PCIEX16, 2*PCIEX4, 1*TPM2.0 pinout, 16 GPIO, 6*COM
With its stable and reliable performance and powerful scalability, Micro ATX motherboards can be widely used in high computing data processing demand scenarios, such as: industrial automation, machine vision, Internet of Things, edge computing, intelligent medical, intelligent transportation, etc;
Product Parameters

Processor	Intel LGA1700 14/13/12 Gen Core™, Pentium® Gold Celeron® Processors
Chipset	B760
Memory	4*DDR5 DIMM, 4400MT/s, Max 128GB
Display	1*DP1.4,1*HDMI2.1(max resolution 4096 x 2160@60Hz)1*EDP,1*VGA(max resolution 1920 x 1080@60Hz)
Sound frequency	Onboard ALC897 Audio Decoder Controller, Separate Amplifier (5W@2Ω MAX)
Reticulation	3*Intel i226 2.5Gbps NICs
Stockpile	4*SATA3.0,2*M.2_NVME
Expansion slot	1*PCIEX16, 1*M.2_WIFI, 2*PCIEX4, 1*TPM2.0 Pin (ASUS Standard)
USB	3*USB3.2 Gen 2 Type A connector
	1*USB3.2 Gen 1 Type A connector
	2*USB3.2 Gen 1(Pin)
	8*USB2.0 (2 rear, 2 encrypted, 4 onboard pins)
Serial Port	6*COM
Back I/O	1*HDMI 1*DP
	3*USB 10Gbps 1*USB 5Gbps
	2*USB2.0 1*MIC_IN 1*GPIB
	1*VGA 1*COM
	3*LAN
Inner I/O	2*F_USB2.0 Pin 1*F_USB3.0 Pin 4*SATA III Socket 2*USB_KEY
	1*F_AUDIO Pin 1*CLR_CMOS pin 1*CASE_OPEN pin 1*LPT/GPIO pin
	1*SPK_CON socket 1*EDP pin 1*F_PANEL pin 5*CPU/SYS_FAN Socket
	6*J_COM socket 1*J_TPM socket 1*I2C socket
Working Temp.	-20ºC ~60ºC
Working Humidity	0% ~95% Relative Humidity, Non-Condensing
Power Type	24+8 ATX Power Supply
Dimmension	244X244mm

1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.

2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
3. What payment method do you use?
A: T/T,PayPal.
4. What is the lead time of your product?
A: 3 days for sample, 15 working days for large quantity.

5. How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
6. What is the warranty time of your product?
A: 1 year warranty for non-artificial damage, for the 2nd to 3rd year we can repair it free, but will charge for the parts that needed to change.
7. Does your motherboard can work 24*7 hours?
Our low power consumption industrial boards have passed very strict tests, there is no problem to work 24*7 hours.
8. Are you a factory or trading company?
A: R&O is a leading R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products industry.
Our products include: mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, mini PC , amd itx motherboard ,HTPC, all-in-one PC, embedded PC, vehicle computers, cloud terminal, networking security, OPS mini PC, NAS storage server, etc.
Computer, OEM / ODM available.

9 If we come to China, can you arrange the visiting to your factory?
A: We warmly welcome and look forward to your visiting to our factory at any time.
b760/ddr5/pciex16/pciex4/wifii/gpio/tpm/vga/dp/3*lan
Optional features: Specification information marked 'optional / optional' items are not included by default, if you need, please consult customer service.
