US$13,000.00-20,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
SHXJ-E 1000/1200
Seals Mode
Bottom Sealing
Sealing & Cutting
Heat-Sealing Cold-Cutting
Machine Type
Sealing Machine
Computerized
Computerized
Type
Plastic Bag Making Machine
Material
HDPE.LDPE. Biodegradable
Max.Bag Width
200-300mm X 8lines
Max.Speed
120-140PCS/Min X 8lines
Bag Type
T-Shirt Bag. Flat Opening Bag
Punching Device
with Automatic Punching
Weight of Overall
2000-3000kgs
Transport Package
Standard Export Wooden Box. Pallet Bottom
Specification
8000X2200X 2200mm
Production Capacity
30sets/Month
Product Description

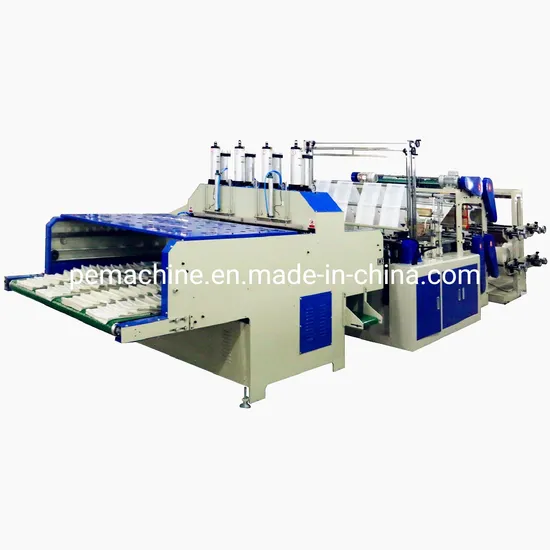

8Lines Automatic t-shirt bag making machine
1 .Characteristics
Double-layer,Eight-line,Bottom Sealing Bag-making Machine has such functions as photoelectric automatic traching microcomputer length setting,high limit stopping,automatic counting,automatic alarm on reaching the set value,high compensating accuracy with such characteristics as neatbags,little error and high automatic of whole machine,so it is a kind of ideal equipment for producing blank bags,colour bags,flat bags and vest bags,etc.And other varlous plastic soft packing bags
2. Features:
1. Computer control over the entire process.
2. From film roll to final bag, one process flow.
3. Servo motor, makes it easy to adjust the bag length and the production speed.
4. Automatic film feeding, coordination free from tension adjustment.
5. High production efficiency to save manpower and time.
6. Equipment with heat sealing and cold cutting device
Model of Machine
| SHXJ-E 850
| SHXJ-E 1050
| SHXJ-E 1250
|
Max.bag cutting Width
| 150mmx4lines x2 layers
| 200mm x 4lines x 2layers
| 270mm x 4lines x 2 layers
|
Max.bag cutting Length
| 200-500mm
| 200-600
| 200-700
|
Thickness
| 0.009 -0.1mm
| 0.009 -0.1mm
| 0.009 -0.1mm
|
Speed
| 20-140pcs/min
| 20-140pcs/min
| 20-140pcs/min
|
Driving Motor
| 2.2KW
| 2.2KW
| 2.2KW
|
Overall Power
| 3KW
| 4KW
| 5KW
|
Weight of Overall
| 1700KG
| 2000KG
| 2500KG
|
Overall Dimensions
| 7500X1800X 2000MM
| 8000X2000X 2000MM
| 8000X2200X 2200MM
|
>>
