Mgk1620*500 Cylindrical Grinder Grinding Machine with Roughness Ra 0.04um

Product Description

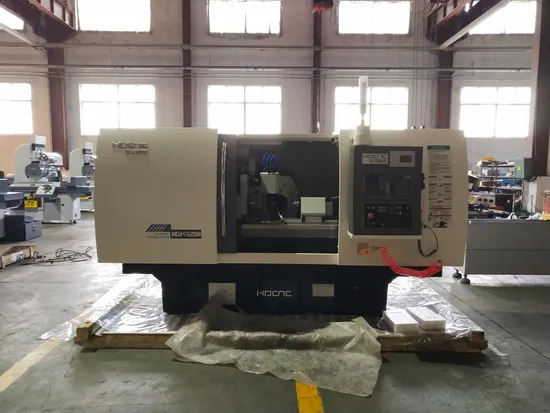

1.Machine details
MGK13 Grinding wheel feed in type MGK16 Grinding wheel oblique feed type
enquiped with OD measuring instrument standard with HNC808DG
or end face instrument You can also choose Siemens or Fanuc
2.Our advantages 1.Factory direct sales, product quality ,delivery time and after-sale services can be effectively guaranteed 2.Big listed company with rich manufacture experience.
3.More than 30 years international trade experiences.
4. KNUTH ,OPTIMUM ,BERNARDO,MSC, GRIZZLY,PHILLIPS and some other companies.The quality of our machines has gotten good reputation from them
3.Parameters

specifications	Unit		model
			MGK1320	MGK1620	MGK1332	MGK 1632
Max.length grinding(O.D)	mm		500/750	500/750	1000/1500	1000/1500
center height	mm		135	135	180	180
Dia. grinding(O.D)	mm		8~200	8~200	8~320	8~320
Max.weight of workpiece	kg		50	50	100	100
workhead
center taper	MT		4	4	5	5
spindle speed(stepless)	r/min		50HZ 60-600	50HZ 60-600	50HZ 35-350	50HZ 35-350
wheelhead
Max.dimension of wheel(O.D*W*ID)	mm		400*50*203	500*75*203	500*50*203	500*75*203
wheel peripheral velocity	m/s		35	45	45	45
Min. set Unit	mm		0.0001	0.0001	0.0001	0.0001
worktable
Max.swiveling angle of worktable clockwise	degree		5/3	5/3	3	3
Max.swiveling angle of worktable anticlockwise	degree		9/6	9/6	7/6	7/6
tailstock
center taper	MT		4	4	4	4
Quill travel	mm		30	30	30	30
electrical system
CNC system			Siemens 828D/Fanuc 0I
wheel head motor power	KW		5.5	7.5	7.5	7.5
workhead motor power	KW		1.1	1.1	1.5	1.5
machining accuracy
roundness	μm		0.5	0.5	0.5	0.5
cylindricity	μm		2/3	2/3	3	3
roughness	μm		Ra0.04	Ra0.04	Ra0.04	Ra0.04
machine weight	t		5.5/6	5.5/6	6.7/7.7	6.7/7.7
package size	cm		340*228*220(500)	340*228*220(500)	460*228*220(1000)	460*228*220(1000)
			400*228*220750)	400*228*220750))	560*228*220(1500)	560*228*220(1500)

4.Standard accessoires
5.Optional accessories
6.Workshop--show that we are large proffesional manufacurer
7. Company honors
8.After-sale services--Let you have no worries
I. The warranty is one year after machine out of our company.During the warranty period of the machine tool due to design, manufacturing, quality of parts and other reasons caused by the fault, free treatment or replacement of new parts.
II. After the warranty period, lifelong paid maintenance and service will be provided.Technical support forever.
III. Provide spare parts and spare parts at preferential prices forever.

---
